Many labs struggle with unreliable results. The solution often depends on the tools used. High precision crucibles solve a major accuracy problem.
High precision crucibles provide stable containment for sensitive thermal experiments, preventing contamination and ensuring that temperature changes reflect only the sample. They support accuracy and reliability in all modern laboratory environments.
Reliable results matter for every scientist and technician. I have seen how even the smallest error in equipment can waste weeks of work. Using high precision crucibles keeps experimental outcomes true and helps prevent unwanted surprises. This is why I always recommend them for any serious research lab. Let’s look closer at how they fit into daily laboratory practice and why the right choice is so important.
What Are High Precision Crucibles Used For in Laboratory Research?
Many researchers invest in expensive instruments, but ignore the importance of consumables. The wrong crucible can ruin test results in less than an hour.

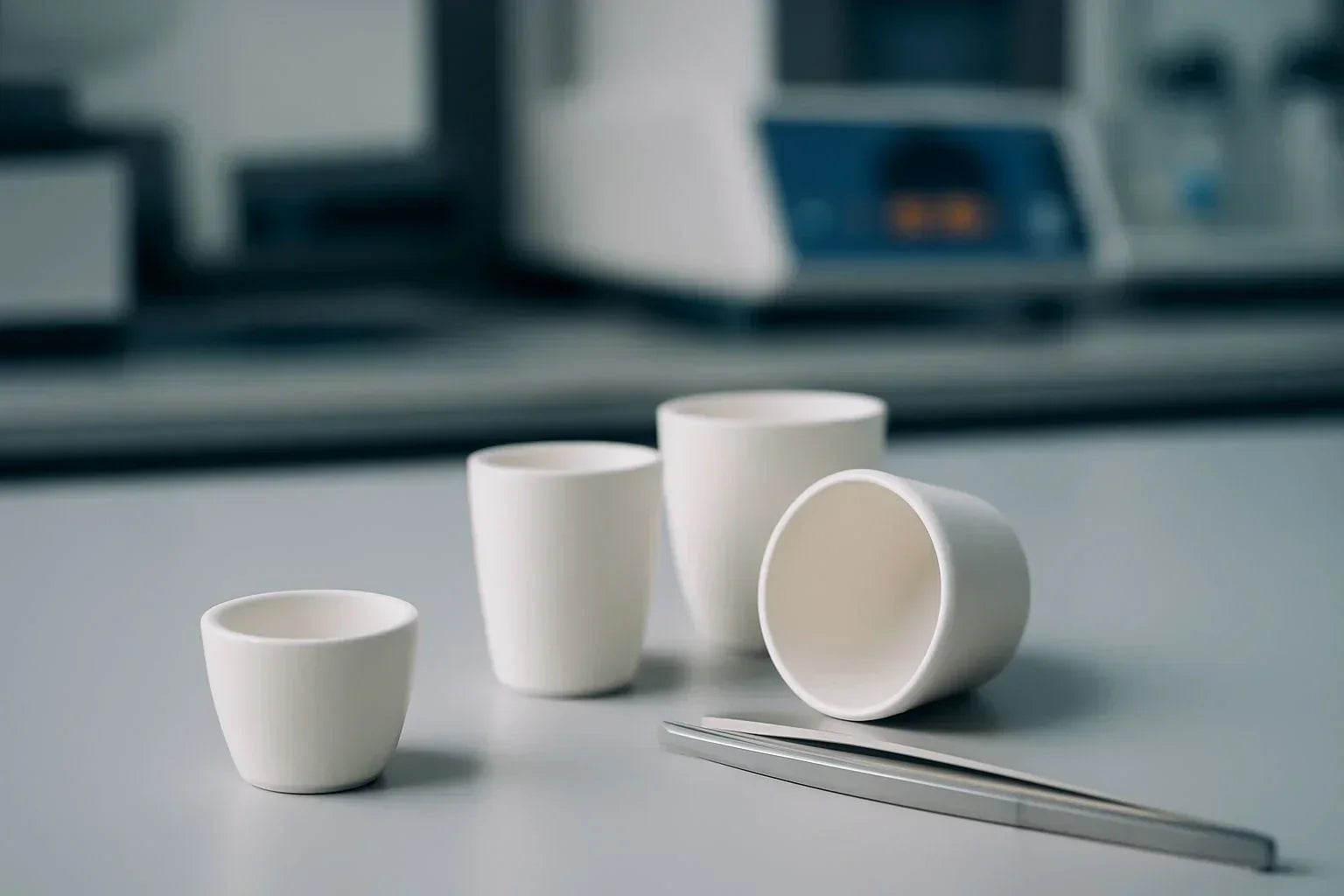

High precision crucibles are used to hold samples during heating, melting, or chemical reactions. They keep samples free from external impurities, supporting procedures in thermal analysis, material testing, and advanced chemical experiments.
Scope of Crucible Applications in Laboratories
| Application | Description | Typical Device | Why Use High Precision? |
|---|---|---|---|
| DSC Testing | Measuring heat flow and phase changes | DSC Analyzer | Needs stable, pure containment to detect small energy changes |
| TGA Experiments | Measuring mass change with temperature | TGA Equipment | Eliminates contamination that could affect weight readings |
| Precious Metal Melting | Studying alloy phase or melting behavior | Furnace Systems | Keeps metal pure and prevents loss during melting |
| Advanced Chemistry Synthesis | Reactions under high temperatures or inert gas | Lab Reactors | Provides safe, inert space for critical reactions |
One technical term to highlight is Differential Scanning Calorimetry (DSC). This technique tracks heat flow during material transitions and demands the most consistent containers possible. Even a small impurity in the crucible can impact sensitive measurements.
How Do High Precision Crucibles Enhance Accuracy in Thermal Analysis?
Many labs trust their high-end analyzers, but forget the supporting tools. Inconsistent crucibles can cause errors, wasting time and effort.
High precision crucibles ensure uniform heat transfer and prevent contamination. They preserve the true nature of the sample, which leads to accurate and consistent outcomes in thermal analysis tests.
Key Ways Crucibles Influence Test Accuracy
| Factor | How Crucible Matters | Impact on Data |
|---|---|---|
| Thermal Conductivity | Uniform metal or ceramic ensures even heating/cooling | Stable baselines and correct transition points |
| Dimensional Precision | Consistent volume and shape keeps results reproducible | Reliable cross-lab comparison of figures |
| Inertness | Prevents chemical reactions between sample and crucible surface | No unwanted peaks from side reactions |
| Surface Finish | Smooth polish reduces sample sticking or residues | Easier recovery, less blank shifts |
The property called thermal conductivity matters a lot. If a crucible heats unevenly or cools slower than the testing device expects, the recorded results will shift. This can mean missing a material's true melting point or other properties.
What Materials Are Best for High Precision Crucibles in Laboratories?
Many labs risk test results by selecting budget containers. Wrong material choices lead to inaccurate data and frequent experiment repeats.
The best crucible materials are platinum, alumina, sapphire, and select high-purity metals. Each offers exceptional stability, chemical resistance, and matching thermal properties for various experiments.
Main Crucible Material Comparison
| Material | Max Temp (℃) | Chemical Resistance | Common Use |
|---|---|---|---|
| Platinum | 1700 | Excellent, inert | High-end DSC/TGA, precious metal analysis |
| Alumina (Al2O3) | 1600 | Very high | General thermal, ceramic research |
| Sapphire | 2000 | Inert, high purity | Thermal stability checks |
| Gold | 1100 | Good, not suitable for strong acids | Certain specialty chemical processes |
| Aluminum | 660 | Good for most, not all, lab conditions | Everyday thermal analysis |
When discussing platinum, it stands out for its inertness and high temperature resistance. Although it costs more, its reliability supports critical experiments where losing a sample could cost far more in repeated runs and wasted time.
What Are the Key Features of a High Precision Crucible for Different Experiments?
Some researchers only look at size or price. Overlooking key features limits the quality of every result and can put years of research at risk.
Essential features include tight tolerances, polished surfaces, certified purity, and clear compatibility with branded lab devices. These guarantee safe, repeatable experiments across all setups.
Crucible Selection Checklist by Feature
| Feature | Importance | Check Before Purchase |
|---|---|---|
| Micron-level Tolerance (≤±0.01mm) |
Ensures consistent results in automated analyzers | Ask for specs and QA data |
| High Purity Material | Reduces contamination risk and maintains sample stability | Request batch certificates |
| Smooth Polished Surface | Makes cleaning and sample transfer easier | Inspect product finish or visuals |
| Device Compatibility | Direct fit with major brands like TA, PerkinElmer, Mettler | Check model matching list |
| Thermal Stability | No cracking or warping after cycles | Review supplier guarantee |
The technical idea of sintering is worth explaining. High temperature sintering during crucible production sets the grain structure, which directly impacts the real-world performance during thermal cycles. High-grade sintering translates into crucibles that last longer with less drift in precision.
Conclusion
High precision crucibles maintain the most accurate, repeatable, and clean results, making them a wise choice for any modern laboratory routine.
