Reflectance Cuvettes for Optical Testing
Professional Reflectance Cuvettes for Accurate Optical Testing
Reflectance cuvettes represent specialized optical measurement cells designed for precise diffuse and specular reflectance measurements. Our comprehensive collection of reflectance cuvettes enables accurate optical density determination, color analysis, and material characterization across UV-Visible-NIR spectral ranges.
From quality control in manufacturing to advanced materials research, our reflectance cuvettes provide the precision and reliability demanded by analytical laboratories, R&D facilities, and industrial testing environments worldwide.
Understanding Reflectance Measurement Technology
Reflectance Measurement Fundamentals
Reflectance spectroscopy measures the fraction of electromagnetic radiation reflected by a surface or material. This non-destructive analytical technique provides valuable information about sample composition, surface properties, and optical characteristics without sample consumption or preparation.
Types of Reflectance Measurements:
- Specular Reflectance: Mirror-like reflection from smooth surfaces at equal angles
- Diffuse Reflectance: Scattered reflection from rough or powdered samples
- Total Reflectance: Combined specular and diffuse reflection components
- Bidirectional Reflectance: Angle-dependent reflection characteristics
Advantages of Reflectance Cuvettes
- Non-Destructive Analysis: Sample remains intact after measurement
- Rapid Measurements: Quick analysis without extensive sample preparation
- Versatile Applications: Suitable for solids, powders, films, and coatings
- High Sensitivity: Detect minute changes in surface properties
- Reproducible Results: Consistent positioning ensures measurement reliability
- Cost-Effective: Minimal sample consumption and preparation costs
Product Categories & Specifications
Standard Reflectance Cuvettes
General-purpose reflectance cells for routine optical measurements and quality control applications. Compatible with most UV-Vis spectrophotometers equipped with reflectance accessories.
Technical Specifications:
- Spectral Range: 200-1100 nm (UV-Vis-NIR)
- Path Length: Variable from 1mm to 10mm
- Sample Volume: 50μL to 3.5mL capacity options
- Material: High-grade optical quartz (fused silica)
- Window Quality: <10 arc seconds parallelism
- Surface Quality: 40-20 scratch-dig specification
- Temperature Range: -40°C to +500°C operating range
Micro-Volume Reflectance Cells
Specialized cells for small sample volumes and precious materials. Ideal for research applications where sample conservation is critical.
Key Features:
- Ultra-Low Volume: As little as 5μL sample requirement
- High Precision: Optimized optical geometry for accuracy
- Easy Cleaning: Smooth surfaces prevent sample carryover
- Contamination Prevention: Inert quartz construction
- Reproducible Positioning: Precision-machined interfaces
High-Temperature Reflectance Cuvettes
Specialized cells for elevated temperature measurements, thermal stability studies, and high-temperature process monitoring.
Performance Specifications:
- Operating Temperature: Up to 1000°C continuous operation
- Thermal Shock Resistance: Rapid heating/cooling capability
- Optical Stability: Minimal drift at elevated temperatures
- Corrosion Resistance: Suitable for aggressive environments
- Thermal Expansion Compensation: Maintained optical alignment
Integrating Sphere Compatible Cuvettes
Designed for use with integrating sphere attachments to measure total reflectance including both specular and diffuse components.
Integration Features:
- Sphere Compatibility: Standard port sizes (6mm, 13mm, 25mm)
- Sample Positioning: Precise alignment for reproducible measurements
- Background Correction: Reference standards included
- Accessory Integration: Compatible with major sphere manufacturers
Applications & Industries
Materials Science & Research
- Optical Materials Characterization: Bandgap determination, absorption edge analysis
- Thin Film Analysis: Coating thickness, refractive index measurement
- Nanoparticle Research: Plasmon resonance studies, size distribution effects
- Semiconductor Testing: Silicon wafer quality, doping concentration
- Polymer Analysis: Additive distribution, degradation studies
- Ceramic Characterization: Porosity effects, sintering studies
Color & Appearance Analysis
- Paint & Coatings: Color matching, opacity determination, hiding power
- Textile Industry: Fabric color analysis, dyeing quality control
- Cosmetics Testing: Foundation coverage, pigment distribution
- Food Quality Control: Color stability, ripeness determination
- Paper Industry: Brightness, whiteness, opacity measurements
- Plastic Manufacturing: Color consistency, additive uniformity
Environmental & Agricultural Applications
- Soil Analysis: Organic matter content, moisture determination
- Water Quality Testing: Turbidity, suspended solids measurement
- Agricultural Monitoring: Crop health assessment, nutrient analysis
- Environmental Monitoring: Pollution detection, contamination studies
- Remote Sensing Calibration: Ground truth measurements for satellite data
Pharmaceutical & Biomedical
- Drug Formulation: Tablet coating uniformity, dissolution studies
- Biomedical Diagnostics: Tissue optical properties, blood analysis
- Medical Device Testing: Implant surface characterization
- Quality Control: API purity, excipient identification
- Stability Studies: Photodegradation monitoring, shelf-life determination
Industrial Quality Control
- Manufacturing QC: Surface finish evaluation, defect detection
- Mining & Metallurgy: Ore composition, metal surface analysis
- Glass Industry: Transparency, color quality, coating uniformity
- Electronics: PCB inspection, component identification
- Automotive: Paint quality, interior material testing
Technical Specifications & Performance
| Parameter | Standard Grade | Precision Grade | High-Temp Grade |
|---|---|---|---|
| Spectral Range | 200-1100 nm | 190-2500 nm | 200-1100 nm |
| Reflectance Accuracy | ±0.5% | ±0.1% | ±1.0% |
| Reproducibility | ±0.2% | ±0.05% | ±0.3% |
| Operating Temperature | -10 to +60°C | -40 to +85°C | -40 to +1000°C |
| Sample Volume | 50μL - 3.5mL | 5μL - 1.5mL | 100μL - 5mL |
| Path Length Options | 1, 2, 5, 10 mm | 0.1, 0.5, 1, 2 mm | 2, 5, 10, 20 mm |
| Window Parallelism | <30 arc seconds | <10 arc seconds | <60 arc seconds |
| Surface Quality | 60-40 | 20-10 | 80-50 |
Selection Guidelines & Recommendations
Choosing the Right Reflectance Cuvette
By Application Type:
| Application | Recommended Type | Key Considerations | Typical Specifications |
|---|---|---|---|
| Routine Quality Control | Standard Reflectance Cuvette | Cost-effectiveness, durability | 10mm path, 1mL volume |
| Research & Development | Precision Grade | High accuracy, reproducibility | Variable path, micro-volume |
| High-Temperature Studies | High-Temp Cuvette | Thermal stability, expansion | 5-20mm path, large volume |
| Precious Samples | Micro-Volume Cell | Sample conservation, precision | 0.1-1mm path, 5-50μL |
| Total Reflectance | Integrating Sphere Compatible | Sphere compatibility, geometry | Standard ports, reference |
Measurement Best Practices:
- Sample Preparation: Ensure uniform surface, appropriate particle size
- Reference Standards: Use certified reflection standards for calibration
- Environmental Control: Maintain stable temperature and humidity
- Baseline Correction: Regular background measurements for accuracy
- Cleaning Protocol: Thorough cleaning between samples to prevent cross-contamination
- Positioning Reproducibility: Consistent sample placement for reliable results
Frequently Asked Questions about Reflectance Cuvettes
Q: What's the difference between diffuse and specular reflectance measurements?
A: Specular reflectance measures mirror-like reflection from smooth surfaces at equal incident and reflection angles. Diffuse reflectance measures scattered light from rough surfaces or powdered samples in all directions. Total reflectance combines both components and provides complete surface characterization.
Q: Can reflectance cuvettes be used for liquid samples?
A: While reflectance cuvettes are primarily designed for solid samples, they can accommodate liquid samples when used with appropriate sample holders or when measuring liquid-solid interfaces. For pure liquid analysis, traditional transmission cuvettes are typically more suitable.
Q: What sample preparation is required for reflectance measurements?
A: Sample preparation depends on the material type:
• Powders: Grinding to uniform particle size, packing density control
• Solids: Surface cleaning, appropriate orientation
• Films: Substrate selection, thickness considerations
• Coatings: Curing completion, surface uniformity verification
Q: How do I choose between standard and integrating sphere measurements?
A: Standard reflectance is suitable for specular measurements and smooth surfaces. Integrating sphere measurements are essential for:
• Total reflectance (specular + diffuse)
• Highly scattering materials
• Absolute reflectance measurements
• Materials with complex surface structures
Q: What reference standards should I use for calibration?
A: Common reference standards include:
• White standards: BaSO₄, PTFE, Spectralon® for high reflectance
• Gray standards: Ceramic tiles for intermediate reflectance
• Black standards: Velvet, carbon black for low reflectance
• Certified standards: NIST-traceable references for absolute measurements
Q: What factors affect reflectance measurement accuracy?
A: Key factors include:
• Sample uniformity: Surface roughness, particle size distribution
• Instrument alignment: Optical geometry, detector positioning
• Environmental conditions: Temperature, humidity, vibration
• Reference calibration: Standard cleanliness, aging effects
• Measurement geometry: Incident angle, collection angle
Q: How do I clean and maintain reflectance cuvettes?
A: Proper maintenance ensures accurate measurements:
• Gentle cleaning: Use lint-free wipes with appropriate solvents
• Avoid scratching: Never use abrasive materials on optical surfaces
• Proper storage: Dust-free environment, protective cases
• Regular inspection: Check for scratches, contamination, alignment
• Calibration verification: Regular reference standard measurements
Q: Are your reflectance cuvettes compatible with all spectrophotometers?
A: Our reflectance cuvettes are designed with standard dimensions compatible with most UV-Vis-NIR spectrophotometers equipped with reflectance accessories. We offer specific models for major manufacturers including Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and others. Contact us for specific compatibility requirements.
Reflectance Measurement Principles & Techniques
Fundamental Optical Principles
Reflectance spectroscopy is based on the interaction between electromagnetic radiation and matter. When light strikes a surface, it can be absorbed, transmitted, or reflected according to the law of conservation of energy:
R + A + T = 1
Where: R = Reflectance, A = Absorbance, T = Transmittance
Fresnel Equations and Surface Reflection
Surface reflectance is governed by Fresnel equations, which describe the reflection and transmission of light at interfaces between different optical media. The reflectance depends on:
- Refractive Index Difference: Greater differences increase reflectance
- Incident Angle: Angle-dependent reflection characteristics
- Polarization State: S- and P-polarized light behave differently
- Wavelength: Dispersive effects in optical materials
Standard Measurement Geometries
Directional-Hemispherical (d:h) Geometry
Sample illuminated from a specific direction with collection over hemisphere. Used for total reflectance measurements including both specular and diffuse components.
Bidirectional (d:d) Geometry
Specific illumination and viewing angles. Common configurations include 45°:0°, 0°:45°, and 8°:d for color and appearance measurements.
Integrating Sphere Geometry
Sample placed at sphere port with diffuse illumination and viewing. Provides average reflectance over all angles and eliminates geometry effects.
Measurement Corrections & Calibrations
- Baseline Correction: Dark current and stray light subtraction
- Reference Calibration: White standard normalization
- Linearity Correction: Detector response linearization
- Wavelength Calibration: Holmium oxide or deuterium standards
- Polarization Correction: Depolarizer use for random polarization
Data Analysis & Interpretation
Kubelka-Munk Theory
For diffuse reflectance from thick, scattering samples, the Kubelka-Munk equation relates reflectance to absorption and scattering coefficients:
F(R∞) = (1-R∞)²/2R∞ = K/S
Where: R∞ = diffuse reflectance, K = absorption coefficient, S = scattering coefficient
Color Analysis Parameters
- CIE Color Space: L*a*b*, XYZ coordinates for color quantification
- Color Difference: ΔE calculations for quality control
- Whiteness Index: Standardized whiteness measurements
- Yellowness Index: Material aging and degradation assessment
Spectral Feature Analysis
- Peak Identification: Characteristic absorption features
- Baseline Determination: Continuum removal techniques
- Derivative Spectroscopy: Enhanced resolution of overlapping bands
- Multivariate Analysis: PCA, PLS for complex mixtures

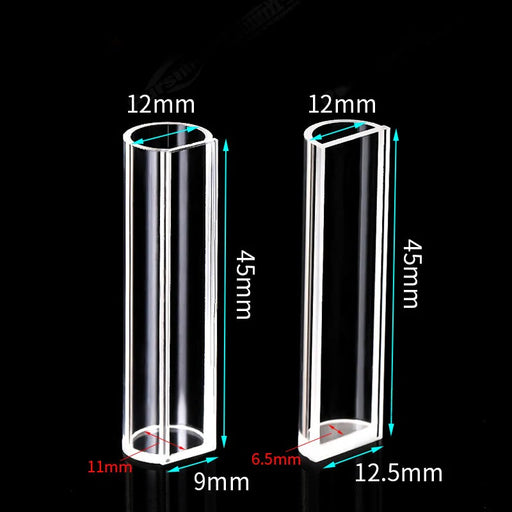

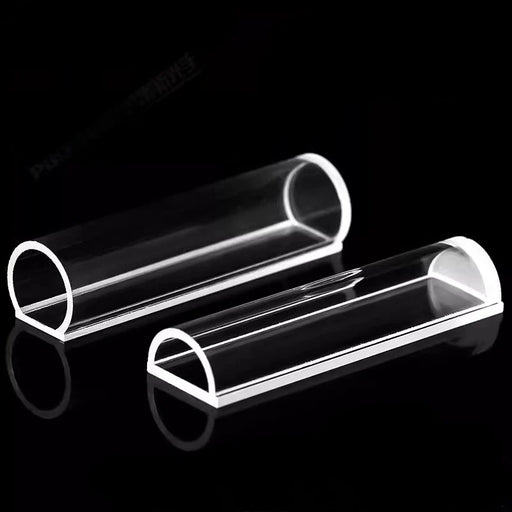

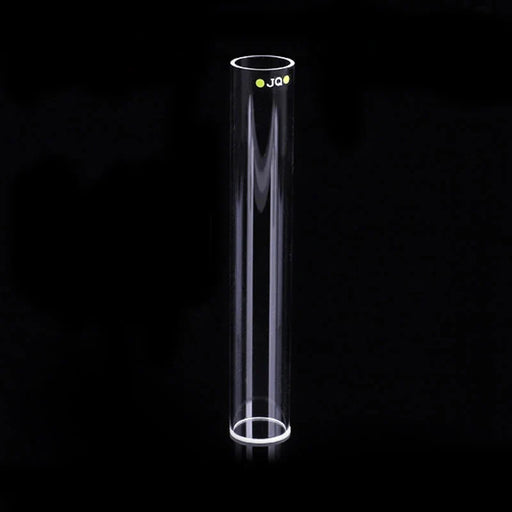

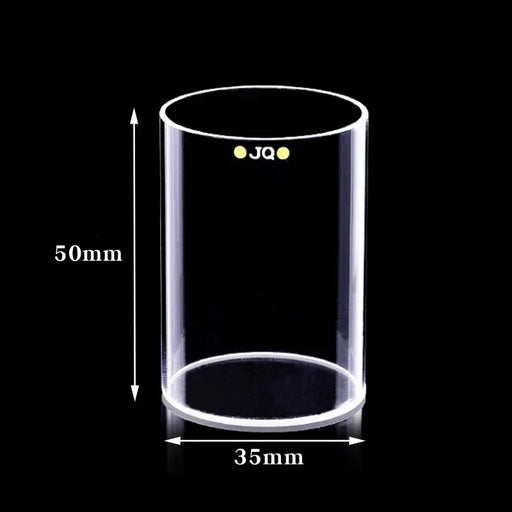

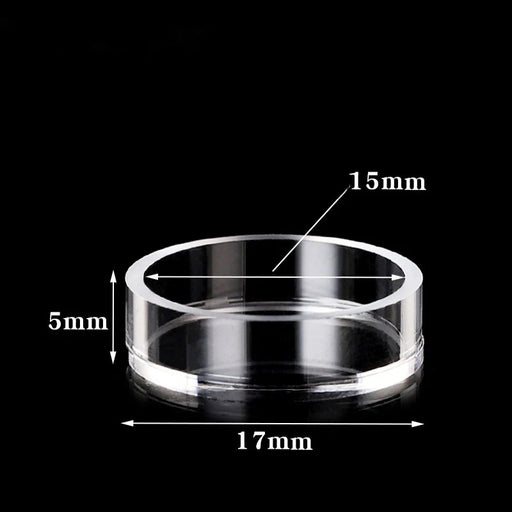

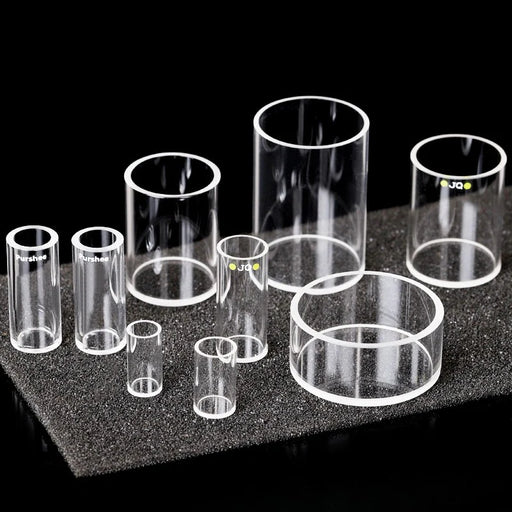

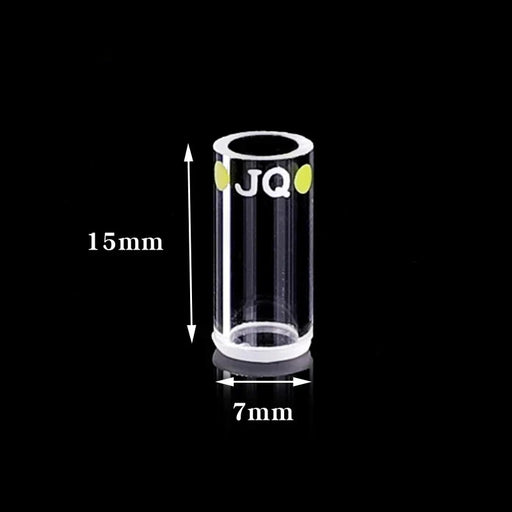

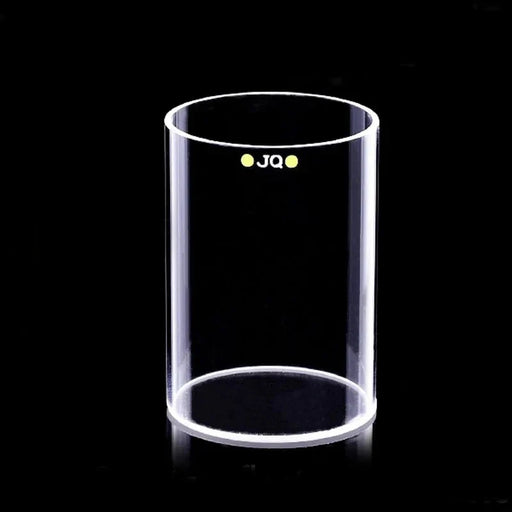

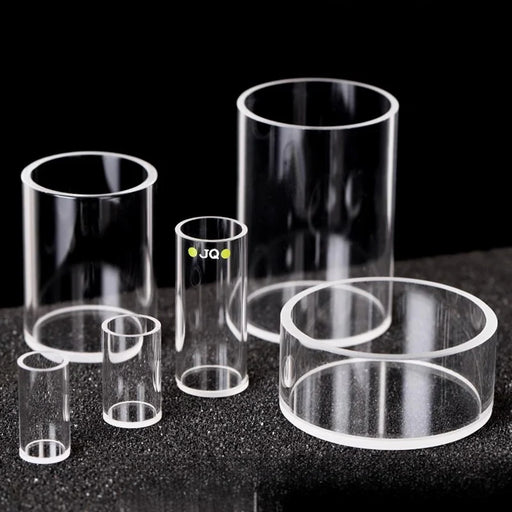

Quartz Reflectance Cuvettes Quartz Cells Cylindrical |NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$49.90
-
$189.99
$49.90
-
$189.99
Current price
$49.90
in stock
Description of Quartz Flow Cells: Type:Quartz Flow Cells Material:Japanese quartz glass Technology:Fully Fution Technology/Frit Sintering T...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$49.90
-
$189.99
$49.90
-
$189.99
Current price
$49.90

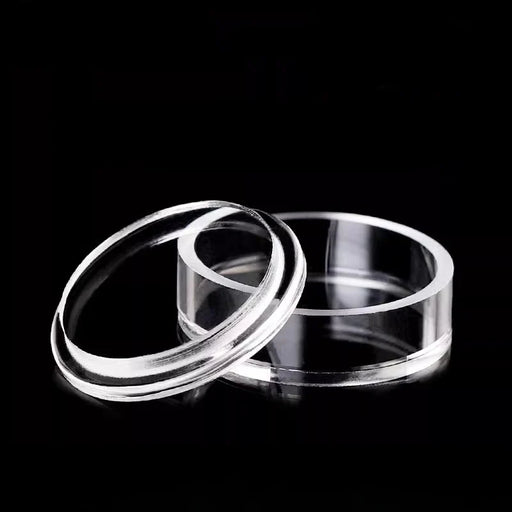

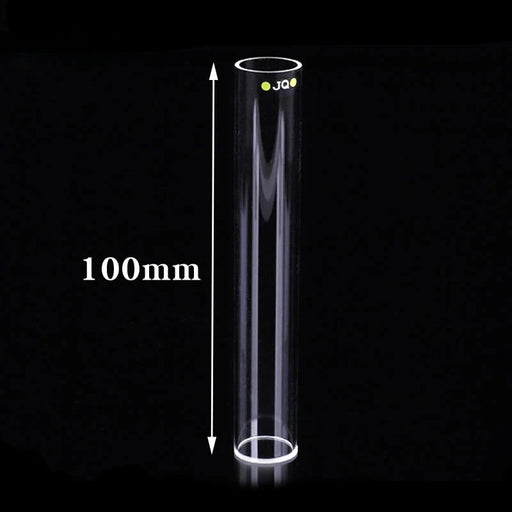

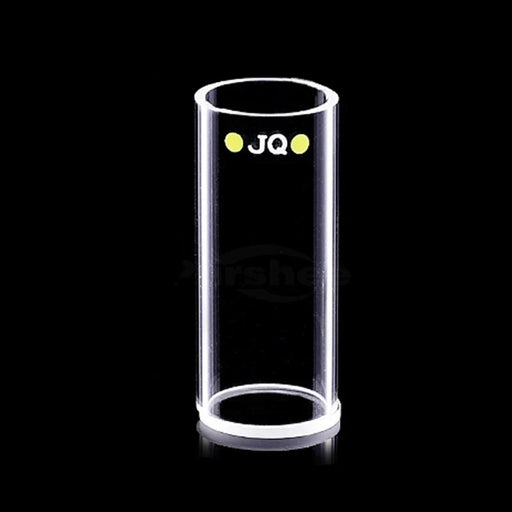

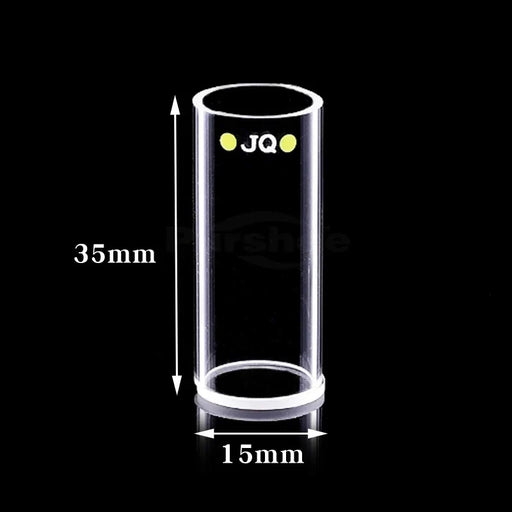

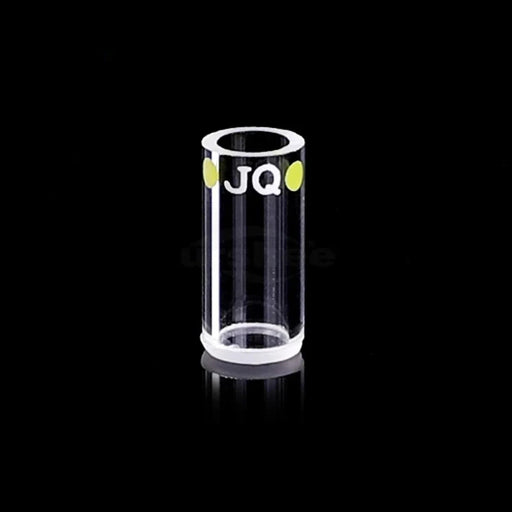

1pcs Quartz Cuvettes UV Cells for Measuring Reflected Light | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$89.90
-
$109.90
$89.90
-
$109.90
Current price
$89.90
in stock
Type: Quartz Cuvette Outline dimension:9*45mm/12.5*45mm Tickness:20mm Technology:Glue bonded Transmittance:>80%(Paired testing) Material...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$89.90
-
$109.90
$89.90
-
$109.90
Current price
$89.90
Quartz Cuvette Cells for Measuring Reflected Light | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$69.90
-
$99.90
$69.90
-
$99.90
Current price
$69.90
in stock
Type: Quartz Cuvette Cell Volume:14~85ml Size:φ35x50mm/φ30*30mm/φ29x38mm/φ44x20mm/φ64x38mm Thickness:1mm/2mm Material：Japanese Quartz Glass ...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$69.90
-
$99.90
$69.90
-
$99.90
Current price
$69.90
250ul Quartz Cuvette Cells for Measuring Reflected Light | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$69.90
$69.90
-
$69.90
Current price
$69.90
in stock
Type: Quartz Cuvette Cell Volume:250ul Size:φ17*5mm Thickness:1mm Material：Japanese Quartz Glass Wave length:200nm-2500nm Suitable for:Labo...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$69.90
$69.90
-
$69.90
Current price
$69.90
0.7ml Quartz Cuvette Fluorescence Cuvettes Cells for Lab | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$139.90
-
$249.90
$139.90
-
$249.90
Current price
$139.90
in stock
Type: Quartz Cuvette Cell Volume:0.7ml Size:φ17*5mm Thickness:1mm Material：Japanese Quartz Glass Wave length:200nm-2500nm Suitable for:Labo...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$139.90
-
$249.90
$139.90
-
$249.90
Current price
$139.90
Quartz Cuvette Cells for Measuring Reflected Light | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$79.90
-
$99.90
$79.90
-
$99.90
Current price
$79.90
in stock
Type: Quartz Cuvette Cell Volume: 3ml~4.5ml Size: φ15x35mm Material：Japanese Quartz Glass Wave length:200nm-2500nm Suitable for:Laboratory R...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$79.90
-
$99.90
$79.90
-
$99.90
Current price
$79.90
14.5ml Quartz Reflectance Cuvettes Cells for Lab | NEXACULE
NEXACULE
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$129.90
$129.90
-
$129.90
Current price
$129.90
in stock
Type: Quartz Cuvette Cell Volume: 14.5ml Size:16x100mm Path length:100mm Material：Japanese Quartz Glass Wave length:200nm-2500nm Suitable f...
View full details
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$129.90
$129.90
-
$129.90
Current price
$129.90
Professional Reflectance Cuvettes for Accurate Optical Testing
Reflectance cuvettes represent specialized optical measurement cells designed for precise diffuse and specular reflectance measurements. Our comprehensive collection of reflectance cuvettes enables accurate optical density determination, color analysis, and material characterization across UV-Visible-NIR spectral ranges.
From quality control in manufacturing to advanced materials research, our reflectance cuvettes provide the precision and reliability demanded by analytical laboratories, R&D facilities, and industrial testing environments worldwide.
Understanding Reflectance Measurement Technology
Reflectance Measurement Fundamentals
Reflectance spectroscopy measures the fraction of electromagnetic radiation reflected by a surface or material. This non-destructive analytical technique provides valuable information about sample composition, surface properties, and optical characteristics without sample consumption or preparation.
Types of Reflectance Measurements:
- Specular Reflectance: Mirror-like reflection from smooth surfaces at equal angles
- Diffuse Reflectance: Scattered reflection from rough or powdered samples
- Total Reflectance: Combined specular and diffuse reflection components
- Bidirectional Reflectance: Angle-dependent reflection characteristics
Advantages of Reflectance Cuvettes
- Non-Destructive Analysis: Sample remains intact after measurement
- Rapid Measurements: Quick analysis without extensive sample preparation
- Versatile Applications: Suitable for solids, powders, films, and coatings
- High Sensitivity: Detect minute changes in surface properties
- Reproducible Results: Consistent positioning ensures measurement reliability
- Cost-Effective: Minimal sample consumption and preparation costs
Product Categories & Specifications
Standard Reflectance Cuvettes
General-purpose reflectance cells for routine optical measurements and quality control applications. Compatible with most UV-Vis spectrophotometers equipped with reflectance accessories.
Technical Specifications:
- Spectral Range: 200-1100 nm (UV-Vis-NIR)
- Path Length: Variable from 1mm to 10mm
- Sample Volume: 50μL to 3.5mL capacity options
- Material: High-grade optical quartz (fused silica)
- Window Quality: <10 arc seconds parallelism
- Surface Quality: 40-20 scratch-dig specification
- Temperature Range: -40°C to +500°C operating range
Micro-Volume Reflectance Cells
Specialized cells for small sample volumes and precious materials. Ideal for research applications where sample conservation is critical.
Key Features:
- Ultra-Low Volume: As little as 5μL sample requirement
- High Precision: Optimized optical geometry for accuracy
- Easy Cleaning: Smooth surfaces prevent sample carryover
- Contamination Prevention: Inert quartz construction
- Reproducible Positioning: Precision-machined interfaces
High-Temperature Reflectance Cuvettes
Specialized cells for elevated temperature measurements, thermal stability studies, and high-temperature process monitoring.
Performance Specifications:
- Operating Temperature: Up to 1000°C continuous operation
- Thermal Shock Resistance: Rapid heating/cooling capability
- Optical Stability: Minimal drift at elevated temperatures
- Corrosion Resistance: Suitable for aggressive environments
- Thermal Expansion Compensation: Maintained optical alignment
Integrating Sphere Compatible Cuvettes
Designed for use with integrating sphere attachments to measure total reflectance including both specular and diffuse components.
Integration Features:
- Sphere Compatibility: Standard port sizes (6mm, 13mm, 25mm)
- Sample Positioning: Precise alignment for reproducible measurements
- Background Correction: Reference standards included
- Accessory Integration: Compatible with major sphere manufacturers
Applications & Industries
Materials Science & Research
- Optical Materials Characterization: Bandgap determination, absorption edge analysis
- Thin Film Analysis: Coating thickness, refractive index measurement
- Nanoparticle Research: Plasmon resonance studies, size distribution effects
- Semiconductor Testing: Silicon wafer quality, doping concentration
- Polymer Analysis: Additive distribution, degradation studies
- Ceramic Characterization: Porosity effects, sintering studies
Color & Appearance Analysis
- Paint & Coatings: Color matching, opacity determination, hiding power
- Textile Industry: Fabric color analysis, dyeing quality control
- Cosmetics Testing: Foundation coverage, pigment distribution
- Food Quality Control: Color stability, ripeness determination
- Paper Industry: Brightness, whiteness, opacity measurements
- Plastic Manufacturing: Color consistency, additive uniformity
Environmental & Agricultural Applications
- Soil Analysis: Organic matter content, moisture determination
- Water Quality Testing: Turbidity, suspended solids measurement
- Agricultural Monitoring: Crop health assessment, nutrient analysis
- Environmental Monitoring: Pollution detection, contamination studies
- Remote Sensing Calibration: Ground truth measurements for satellite data
Pharmaceutical & Biomedical
- Drug Formulation: Tablet coating uniformity, dissolution studies
- Biomedical Diagnostics: Tissue optical properties, blood analysis
- Medical Device Testing: Implant surface characterization
- Quality Control: API purity, excipient identification
- Stability Studies: Photodegradation monitoring, shelf-life determination
Industrial Quality Control
- Manufacturing QC: Surface finish evaluation, defect detection
- Mining & Metallurgy: Ore composition, metal surface analysis
- Glass Industry: Transparency, color quality, coating uniformity
- Electronics: PCB inspection, component identification
- Automotive: Paint quality, interior material testing
Technical Specifications & Performance
| Parameter | Standard Grade | Precision Grade | High-Temp Grade |
|---|---|---|---|
| Spectral Range | 200-1100 nm | 190-2500 nm | 200-1100 nm |
| Reflectance Accuracy | ±0.5% | ±0.1% | ±1.0% |
| Reproducibility | ±0.2% | ±0.05% | ±0.3% |
| Operating Temperature | -10 to +60°C | -40 to +85°C | -40 to +1000°C |
| Sample Volume | 50μL - 3.5mL | 5μL - 1.5mL | 100μL - 5mL |
| Path Length Options | 1, 2, 5, 10 mm | 0.1, 0.5, 1, 2 mm | 2, 5, 10, 20 mm |
| Window Parallelism | <30 arc seconds | <10 arc seconds | <60 arc seconds |
| Surface Quality | 60-40 | 20-10 | 80-50 |
Selection Guidelines & Recommendations
Choosing the Right Reflectance Cuvette
By Application Type:
| Application | Recommended Type | Key Considerations | Typical Specifications |
|---|---|---|---|
| Routine Quality Control | Standard Reflectance Cuvette | Cost-effectiveness, durability | 10mm path, 1mL volume |
| Research & Development | Precision Grade | High accuracy, reproducibility | Variable path, micro-volume |
| High-Temperature Studies | High-Temp Cuvette | Thermal stability, expansion | 5-20mm path, large volume |
| Precious Samples | Micro-Volume Cell | Sample conservation, precision | 0.1-1mm path, 5-50μL |
| Total Reflectance | Integrating Sphere Compatible | Sphere compatibility, geometry | Standard ports, reference |
Measurement Best Practices:
- Sample Preparation: Ensure uniform surface, appropriate particle size
- Reference Standards: Use certified reflection standards for calibration
- Environmental Control: Maintain stable temperature and humidity
- Baseline Correction: Regular background measurements for accuracy
- Cleaning Protocol: Thorough cleaning between samples to prevent cross-contamination
- Positioning Reproducibility: Consistent sample placement for reliable results
Frequently Asked Questions about Reflectance Cuvettes
Q: What's the difference between diffuse and specular reflectance measurements?
A: Specular reflectance measures mirror-like reflection from smooth surfaces at equal incident and reflection angles. Diffuse reflectance measures scattered light from rough surfaces or powdered samples in all directions. Total reflectance combines both components and provides complete surface characterization.
Q: Can reflectance cuvettes be used for liquid samples?
A: While reflectance cuvettes are primarily designed for solid samples, they can accommodate liquid samples when used with appropriate sample holders or when measuring liquid-solid interfaces. For pure liquid analysis, traditional transmission cuvettes are typically more suitable.
Q: What sample preparation is required for reflectance measurements?
A: Sample preparation depends on the material type:
• Powders: Grinding to uniform particle size, packing density control
• Solids: Surface cleaning, appropriate orientation
• Films: Substrate selection, thickness considerations
• Coatings: Curing completion, surface uniformity verification
Q: How do I choose between standard and integrating sphere measurements?
A: Standard reflectance is suitable for specular measurements and smooth surfaces. Integrating sphere measurements are essential for:
• Total reflectance (specular + diffuse)
• Highly scattering materials
• Absolute reflectance measurements
• Materials with complex surface structures
Q: What reference standards should I use for calibration?
A: Common reference standards include:
• White standards: BaSO₄, PTFE, Spectralon® for high reflectance
• Gray standards: Ceramic tiles for intermediate reflectance
• Black standards: Velvet, carbon black for low reflectance
• Certified standards: NIST-traceable references for absolute measurements
Q: What factors affect reflectance measurement accuracy?
A: Key factors include:
• Sample uniformity: Surface roughness, particle size distribution
• Instrument alignment: Optical geometry, detector positioning
• Environmental conditions: Temperature, humidity, vibration
• Reference calibration: Standard cleanliness, aging effects
• Measurement geometry: Incident angle, collection angle
Q: How do I clean and maintain reflectance cuvettes?
A: Proper maintenance ensures accurate measurements:
• Gentle cleaning: Use lint-free wipes with appropriate solvents
• Avoid scratching: Never use abrasive materials on optical surfaces
• Proper storage: Dust-free environment, protective cases
• Regular inspection: Check for scratches, contamination, alignment
• Calibration verification: Regular reference standard measurements
Q: Are your reflectance cuvettes compatible with all spectrophotometers?
A: Our reflectance cuvettes are designed with standard dimensions compatible with most UV-Vis-NIR spectrophotometers equipped with reflectance accessories. We offer specific models for major manufacturers including Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and others. Contact us for specific compatibility requirements.
Reflectance Measurement Principles & Techniques
Fundamental Optical Principles
Reflectance spectroscopy is based on the interaction between electromagnetic radiation and matter. When light strikes a surface, it can be absorbed, transmitted, or reflected according to the law of conservation of energy:
R + A + T = 1
Where: R = Reflectance, A = Absorbance, T = Transmittance
Fresnel Equations and Surface Reflection
Surface reflectance is governed by Fresnel equations, which describe the reflection and transmission of light at interfaces between different optical media. The reflectance depends on:
- Refractive Index Difference: Greater differences increase reflectance
- Incident Angle: Angle-dependent reflection characteristics
- Polarization State: S- and P-polarized light behave differently
- Wavelength: Dispersive effects in optical materials
Standard Measurement Geometries
Directional-Hemispherical (d:h) Geometry
Sample illuminated from a specific direction with collection over hemisphere. Used for total reflectance measurements including both specular and diffuse components.
Bidirectional (d:d) Geometry
Specific illumination and viewing angles. Common configurations include 45°:0°, 0°:45°, and 8°:d for color and appearance measurements.
Integrating Sphere Geometry
Sample placed at sphere port with diffuse illumination and viewing. Provides average reflectance over all angles and eliminates geometry effects.
Measurement Corrections & Calibrations
- Baseline Correction: Dark current and stray light subtraction
- Reference Calibration: White standard normalization
- Linearity Correction: Detector response linearization
- Wavelength Calibration: Holmium oxide or deuterium standards
- Polarization Correction: Depolarizer use for random polarization
Data Analysis & Interpretation
Kubelka-Munk Theory
For diffuse reflectance from thick, scattering samples, the Kubelka-Munk equation relates reflectance to absorption and scattering coefficients:
F(R∞) = (1-R∞)²/2R∞ = K/S
Where: R∞ = diffuse reflectance, K = absorption coefficient, S = scattering coefficient
Color Analysis Parameters
- CIE Color Space: L*a*b*, XYZ coordinates for color quantification
- Color Difference: ΔE calculations for quality control
- Whiteness Index: Standardized whiteness measurements
- Yellowness Index: Material aging and degradation assessment
Spectral Feature Analysis
- Peak Identification: Characteristic absorption features
- Baseline Determination: Continuum removal techniques
- Derivative Spectroscopy: Enhanced resolution of overlapping bands
- Multivariate Analysis: PCA, PLS for complex mixtures
