PerkinElmer Thermal Analysis Consumables | DSC/TGA Sample Pans & Crucibles

Professional PerkinElmer-Compatible Thermal Analysis Consumables

Our comprehensive selection of thermal analysis consumables is engineered for seamless compatibility with PerkinElmer DSC, TGA, and STA instruments. These precision-manufactured alternatives deliver the same reliability and performance as original equipment while offering significant cost savings for research laboratories and industrial applications.

Why Choose Our PerkinElmer-Compatible Consumables?

  • Guaranteed Compatibility: Precisely engineered for DSC 6000, DSC 8000, TGA 4000, STA 6000/8000 series
  • Premium Materials: High-purity alumina ceramic, platinum, aluminum, graphite, and stainless steel options
  • Significant Savings: Save up to 60% compared to original equipment manufacturer pricing
  • Quality Assurance: Each batch tested for dimensional accuracy and thermal performance
  • Immediate Availability: Most consumables in stock for fast shipping worldwide

Compatible PerkinElmer Instrument Series

DSC Series: DSC 4000, DSC 6000, DSC 8000, DSC 8500, Diamond DSC, Pyris 1 DSC, Pyris 6 DSC, Jade DSC

TGA Series: TGA 4000, TGA 7, TGA 8000, Pyris 1 TGA, TGA6/AS6

STA Series: STA 6000, STA 8000 (Simultaneous TGA-DSC)

Legacy Systems: DTA7, DTA1700, and other discontinued models

Material Specifications for PerkinElmer Systems

Material Type Volume Options Max Temperature Compatible Instruments Typical Applications
Aluminum 20-60μl 600°C DSC 6000/8000, Pyris DSC Polymer analysis, pharmaceuticals
Alumina Ceramic 40-250μl 1600°C TGA 4000/8000, STA 6000/8000 High-temp decomposition, catalysis
Platinum 45μl 1500°C All DSC/TGA models Trace analysis, research applications
Graphite 40-250μl 2000°C DSC/TGA under inert atmosphere Extreme temperature studies
Stainless Steel 30-60μl 600°C High-pressure applications Pressurized sample analysis

Application Guidelines for PerkinElmer Systems

DSC Applications (DSC 6000/8000 Series)

  • Standard Analysis: 40μl aluminum pans for melting point and glass transition measurements
  • Volatile Samples: 20μl volatile aluminum pans with hermetic sealing for solvents and oils
  • High-Pressure Studies: 30μl stainless steel capsules with copper sealing disks
  • Research Applications: Platinum pans for contamination-free analysis

TGA Applications (TGA 4000/8000 Series)

  • Decomposition Studies: 250μl alumina ceramic pans for thermal stability testing
  • Weight Loss Analysis: Open crucibles for moisture and volatiles determination
  • Catalysis Research: High-volume pans for sufficient sample loading

STA Applications (STA 6000/8000 Series)

  • Simultaneous Analysis: Alumina crucibles with lids for controlled atmosphere studies
  • Material Characterization: Multiple volume options for different sample requirements
  • Process Development: Cost-effective consumables for routine quality control

Product Series Overview

Standard DSC Consumables

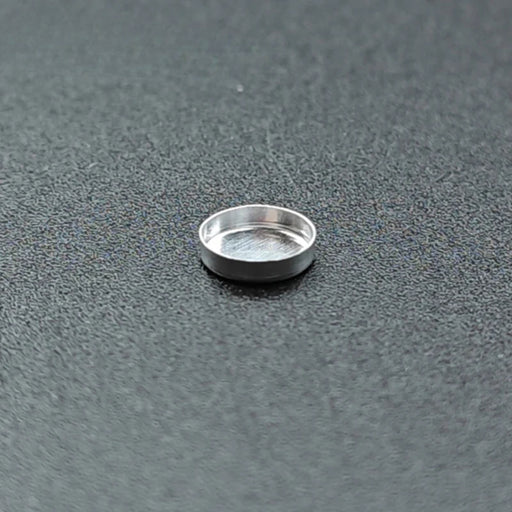

Our aluminum sample pans are designed for routine DSC measurements up to 600°C. Available in standard (40μl) and volatile (20μl) configurations with matching covers. Perfect for polymer analysis, pharmaceutical testing, and food science applications.

High-Temperature TGA Consumables

Alumina ceramic crucibles provide excellent thermal stability and chemical resistance for TGA analysis up to 1600°C. Available in multiple volumes (40-250μl) with optional lids for controlled atmosphere studies.

Premium Research Consumables

Platinum consumables offer unmatched purity and chemical inertness for critical research applications. Reusable design provides long-term value for laboratories performing trace analysis or working with aggressive chemicals.

Specialized High-Pressure Systems

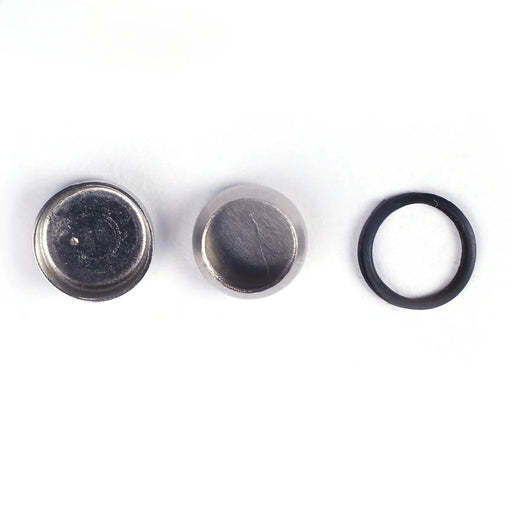

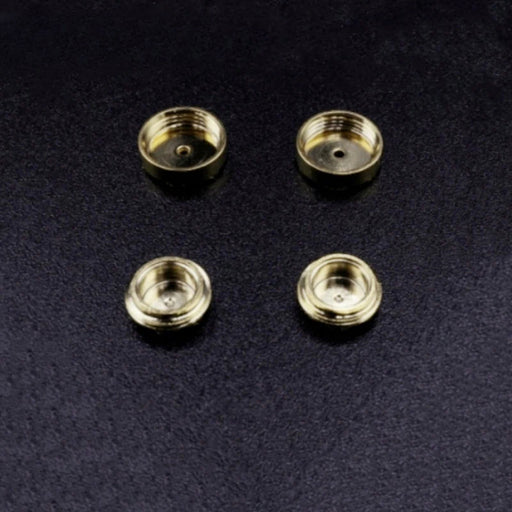

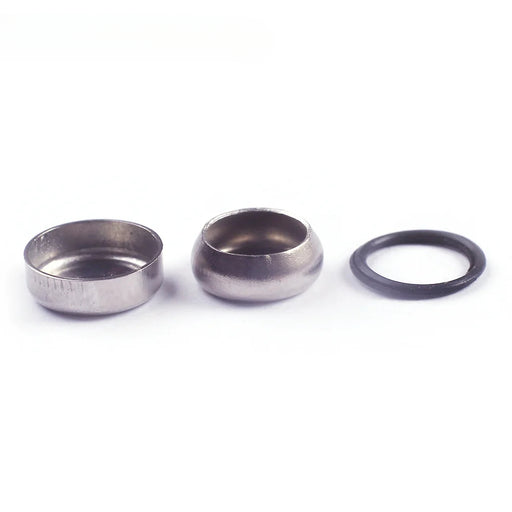

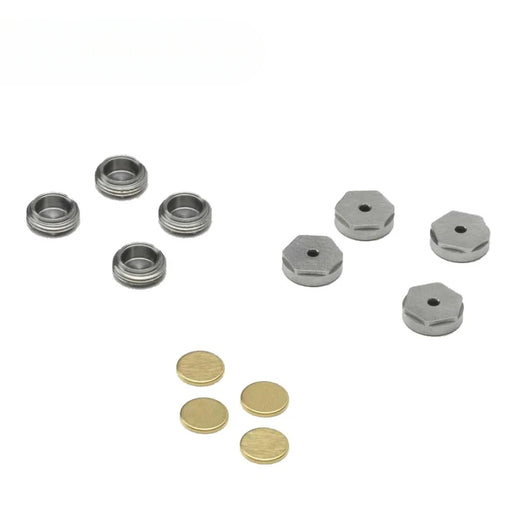

Stainless steel capsules with gold-plated copper sealing disks enable pressurized sample analysis up to 6 MPa. Complete with sealing tools and accessories for safe operation.

PerkinElmer Part Number Cross-Reference

Original PE Part Number Description Our Compatible Product Material Volume
02190041 Standard Aluminum Pan A-PE-274 Aluminum 40μl
N5200040 Ceramic Sample Pan A-PA-134 Alumina 250μl
N5356016 Platinum Sample Pan A-PA-134-5 Platinum 45μl
B0182901 High Pressure Capsule A-PE-21 Stainless Steel 30μl
03190025 Graphite Sample Pan A-PS-139 Graphite 40μl

Frequently Asked Questions

Are these consumables compatible with both current and legacy PerkinElmer instruments?

Yes, our consumables are designed to work with both current models (DSC 8000, TGA 4000 series) and legacy systems (Pyris 1, DTA7, etc.). We maintain compatibility across all PerkinElmer instrument generations.

How do I select the right sample pan for my PerkinElmer instrument?

Check your instrument manual for the recommended part number, or contact our technical support team with your instrument model. We provide detailed compatibility charts for all PerkinElmer systems.

What's the difference between standard and volatile aluminum pans?

Standard pans (40μl) are used for routine solid samples, while volatile pans (20μl) feature hermetic sealing to prevent sample loss when analyzing liquids, solvents, or samples that release gases during heating.

Do you offer high-pressure consumables for PerkinElmer DSC systems?

Yes, we provide complete high-pressure solutions including stainless steel capsules, gold-plated copper sealing disks, and sealing tools compatible with PerkinElmer high-pressure DSC accessories.

Quality & Performance Standards

Dimensional Precision

All consumables manufactured to ±0.02mm tolerance ensuring perfect fit in PerkinElmer sample holders and furnaces. Dimensional verification performed on every production batch.

Material Purity

High-purity materials sourced from certified suppliers: >99.5% Al₂O₃ for ceramic consumables, 99.9% Pt for platinum products, and electronic-grade aluminum for sample pans.

Thermal Performance Validation

Each material batch tested for thermal conductivity, expansion characteristics, and temperature stability to ensure consistent DSC/TGA results matching PerkinElmer specifications.

Contamination Control

Manufacturing in ISO 9001 certified facilities with strict contamination control protocols. All consumables cleaned and packaged in controlled environments.

*All PerkinElmer part numbers and instrument models mentioned are for compatibility reference only. We are an independent supplier and not affiliated with PerkinElmer Inc. All trademarks belong to their respective owners.

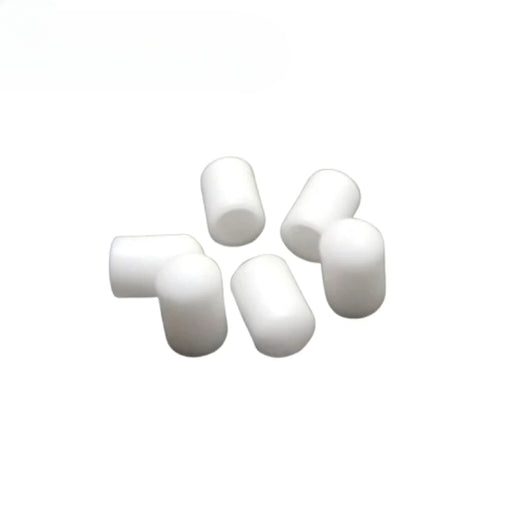

250μl Ceramic Sample Pans with Covers for PE N5200040 N5200045 for PerkinElmer/PE Alumina Ceramic Crucible with Lid | Nexacule - Alumina crucibles
250μl Ceramic Sample Pans with Covers for PE N5200040 N5200045 for PerkinElmer/PE Alumina Ceramic Crucible with Lid | Nexacule - Alumina crucibles

250μl Ceramic Sample Pans with Covers for PE N5200040 N5200045 for PerkinElmer/PE Alumina Ceramic Crucible with Lid | Nexacule

Sample pan /crucible with lid
$0.00 - $0.00
$0.00
$186.20 - $665.00
$186.20 - $665.00
$186.20
in stock

Type Sample pan /crucible with lid  Suitable for Used in all TGA6 Series Products, Including: TGA6, Pyris6TGA,  TGA 4000,STA 6000/8000,DS...

View full details
$0.00 - $0.00
$0.00
$186.20 - $665.00
$186.20 - $665.00
$186.20

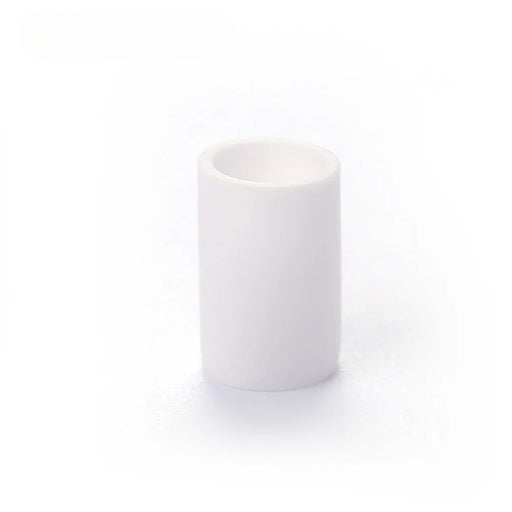

60μl Inner Alumina Crucible with Lid for PE N5200040 N5200045 for PerkinElmer/PE| NEXACULE - Sample pan /crucible with lid
60μl Inner Alumina Crucible with Lid for PE N5200040 N5200045 for PerkinElmer/PE| NEXACULE - Sample pan /crucible with lid

60μl Inner Alumina Crucible with Lid for PE N5200040 N5200045 for PerkinElmer/PE| NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$148.20 - $380.00
$148.20 - $380.00
$148.20
in stock

Type Sample pan /crucible with lid Suitable for Ceramic Sample Pans PE N5200040 N5200045 Size D5*4.6*0.4mm Part No. A-PA-135 Lid  Wit...

View full details
$0.00 - $0.00
$0.00
$148.20 - $380.00
$148.20 - $380.00
$148.20

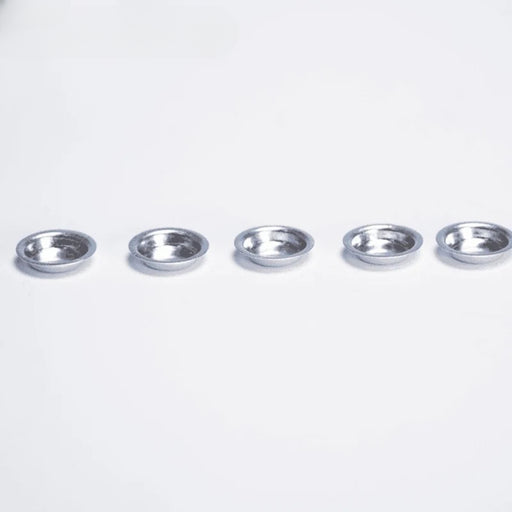

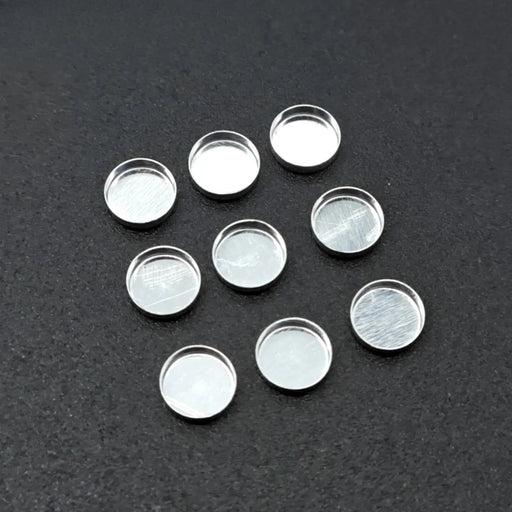

40μl Standard Aluminum Sample Pan/Lid Set for PE-02190041/02191072/02191073 for PerKinElmer |Nexacule - Sample pan /crucible with lid
40μl Standard Aluminum Sample Pan/Lid Set for PE-02190041/02191072/02191073 for PerKinElmer |Nexacule - Sample pan /crucible with lid

40μl Standard Aluminum Sample Pan/Lid Set for PE-02190041/02191072/02191073 for PerKinElmer |Nexacule

NEXACULE
$0.00 - $0.00
$0.00
$129.20 - $228.00
$129.20 - $228.00
$129.20
in stock

Type Sample pan /crucible with lid Suitable for PE  Part NO A-P-27 (Same desgin as PE-02190041 PE 0219-0041/0219-1072 /0219-1073) Capacity...

View full details
$0.00 - $0.00
$0.00
$129.20 - $228.00
$129.20 - $228.00
$129.20

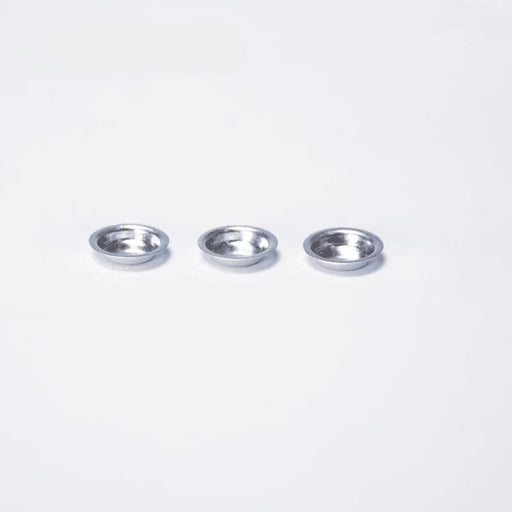

Aluminum High Volume Sample Pan 900760.901 for TA Instruments/PerkinElmer/Netzsch | NEXACULE - Sample pan /crucible
Aluminum High Volume Sample Pan 900760.901 for TA Instruments/PerkinElmer/Netzsch | NEXACULE - Sample pan /crucible

Aluminum High Volume Sample Pan 900760.901 for TA Instruments/PerkinElmer/Netzsch | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$95.00 - $171.00
$95.00 - $171.00
$95.00
in stock

High-Volume Aluminum DSC Sample Pans - Multi-Brand Compatible Product Overview Maximize your DSC analysis capabilities with our premium high-volume...

View full details
$0.00 - $0.00
$0.00
$95.00 - $171.00
$95.00 - $171.00
$95.00
50μl Alumina Crucible with Flat Base for PerkinElmer/PE DuPont TGA Ceramic Pans | NEXACULE - Sample pan /crucible
50μl Alumina Crucible with Flat Base for PerkinElmer/PE DuPont TGA Ceramic Pans | NEXACULE - Sample pan /crucible

50μl Alumina Crucible with Flat Base for PerkinElmer/PE DuPont TGA Ceramic Pans | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$140.60 - $332.50
$140.60 - $332.50
$140.60
in stock

Type Sample pan /crucible PE TGA & DSC Suitable for PE DuPont Part NO A-PA-132  Volume μL 50μl  Lid  Without Material Alumina Cera...

View full details
$0.00 - $0.00
$0.00
$140.60 - $332.50
$140.60 - $332.50
$140.60
60μl Alumina Sample Cups with Round Bottom for PE 04190387 for PerkinElmer/PE Ceramic Pans | NEXACULE - Sample pan /crucible
60μl Alumina Sample Cups with Round Bottom for PE 04190387 for PerkinElmer/PE Ceramic Pans | NEXACULE - Sample pan /crucible

60μl Alumina Sample Cups with Round Bottom for PE 04190387 for PerkinElmer/PE Ceramic Pans | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$142.50 - $380.00
$142.50 - $380.00
$142.50
in stock

Type Sample pan /crucible Suitable for PE DTA7 and DTA1700, DuPont Part NO A-PA-133 same design as PE-04190387  Volume μL 60μl  Lid  Wit...

View full details
$0.00 - $0.00
$0.00
$142.50 - $380.00
$142.50 - $380.00
$142.50
40μl Alumina Crucible with Lid for PE N5190180 for PerkinElmer/PE Ceramic Pans | NEXACULE - Sample pan /crucible with lid
40μl Alumina Crucible with Lid for PE N5190180 for PerkinElmer/PE Ceramic Pans | NEXACULE - Sample pan /crucible with lid

40μl Alumina Crucible with Lid for PE N5190180 for PerkinElmer/PE Ceramic Pans | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$152.00 - $427.50
$152.00 - $427.50
$152.00
in stock

Type Sample pan /crucible with lid Suitable for PE Part NO A-PA-133-1 same design as PE N5190180 Capacity 40μl Lid With Material A...

View full details
$0.00 - $0.00
$0.00
$152.00 - $427.50
$152.00 - $427.50
$152.00
250μl Graphite Sample Pan Same Size as PE-N5200045 PerkinElmer Thermal Analysis Consumables | NEXACULE - Sample pan /crucible

250μl Graphite Sample Pan Same Size as PE-N5200045 PerkinElmer Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$308.75 - $503.50
$308.75 - $503.50
$308.75
in stock

Type Sample pan /crucible Suitable for PE TGA6/As6 STA 8000, TGA 4000, STA 6000 Part NO Size...

View full details
$0.00 - $0.00
$0.00
$308.75 - $503.50
$308.75 - $503.50
$308.75

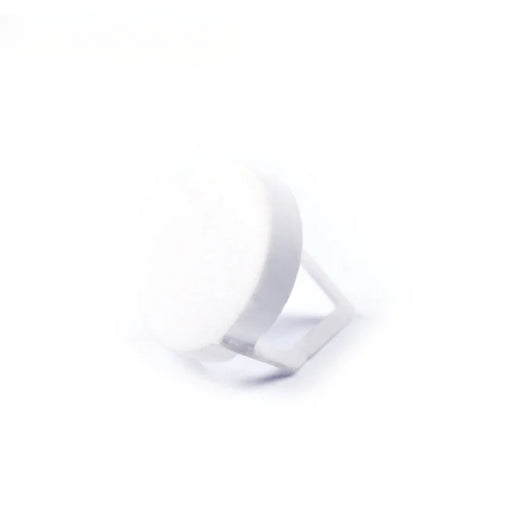

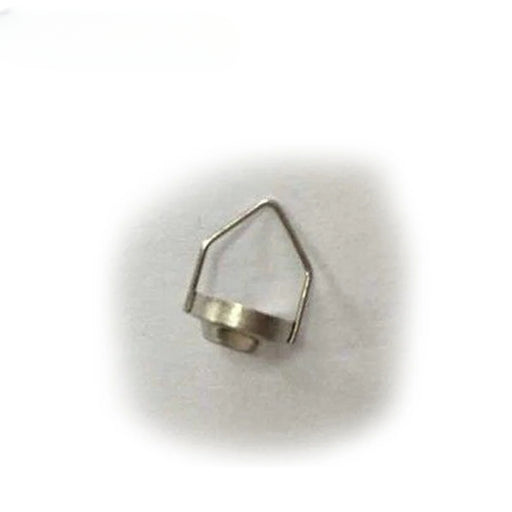

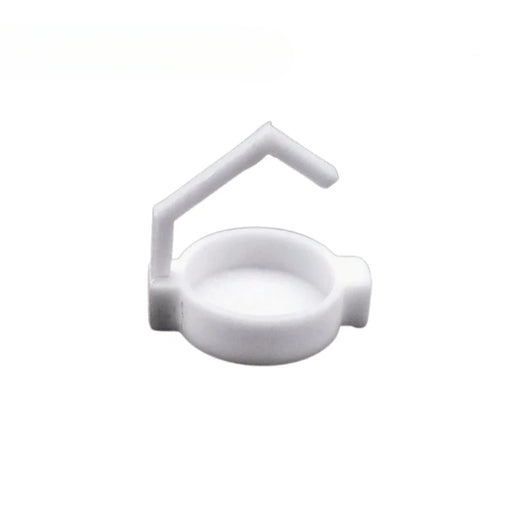

Alumina Sample Pan Stirrup for PerkinElmer/PE TGA 8000 Thermal Analysis Consumables/Tool | NEXACULE - Sample pan /crucible
Alumina Sample Pan Stirrup for PerkinElmer/PE TGA 8000 Thermal Analysis Consumables/Tool | NEXACULE - Sample pan /crucible

Alumina Sample Pan Stirrup for PerkinElmer/PE TGA 8000 Thermal Analysis Consumables/Tool | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$99.75 - $218.03
$99.75 - $218.03
$99.75
in stock

  Type Sample pan /crucible Suitable for Perkin Elmer TGA 8000  Part NO A-PA-136-1 Volume μL / Handle With Material Alumina Ceramic  ...

View full details
$0.00 - $0.00
$0.00
$99.75 - $218.03
$99.75 - $218.03
$99.75

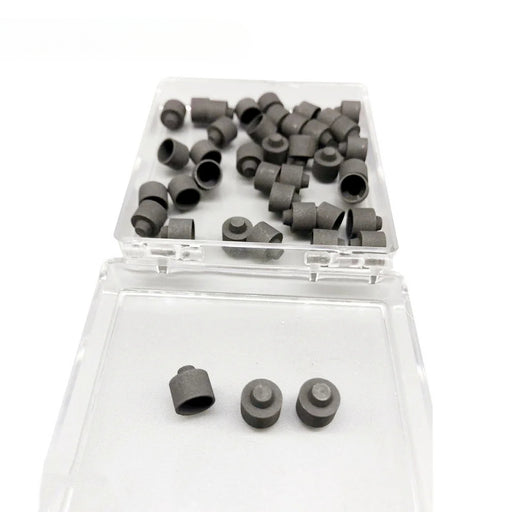

40μl Graphite Sample Pans and Covers for PE 03190025 for PerkinElmer/PE Graphite Crucibles Thermal Analysis Consumables | NEXACULE - Sample pan /crucible with lid

40μl Graphite Sample Pans and Covers for PE 03190025 for PerkinElmer/PE Graphite Crucibles Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$129.20 - $296.40
$129.20 - $296.40
$129.20
in stock

Type Sample pan /crucible with lid Suitable for PE PE 03190025  | For PerkinElmer DSC 6000, DSC 8000, Pyris 1 DSC, Jade DSC, DSC 4000, Di...

View full details
$0.00 - $0.00
$0.00
$129.20 - $296.40
$129.20 - $296.40
$129.20

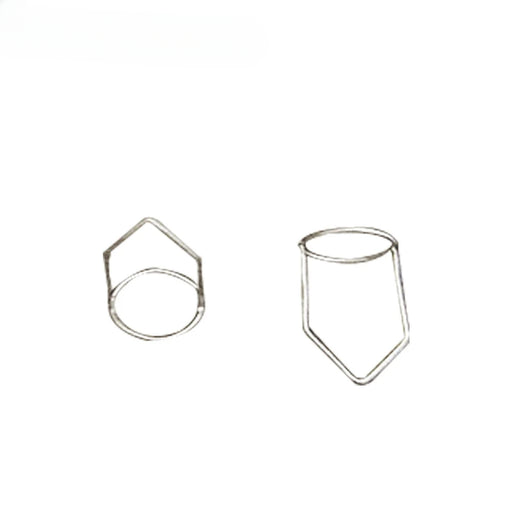

Platinum Stirrup Kit PE 03190265 for PerkinElmer/PE TGA 7 PYRIS 1 Pt Stirrups | NEXACULE - Stirrup kit
Platinum Stirrup Kit PE 03190265 for PerkinElmer/PE TGA 7 PYRIS 1 Pt Stirrups | NEXACULE - Stirrup kit

Platinum Stirrup Kit PE 03190265 for PerkinElmer/PE TGA 7 PYRIS 1 Pt Stirrups | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$342.00 - $570.00
$342.00 - $570.00
$342.00
in stock

  Type Stirrup kit  Suitable for PE GA 7, PYRIS 1  Part NO A-PP-137-1 same design as PE 03190265 Temperature Range :-150～1600℃ Match cru...

View full details
$0.00 - $0.00
$0.00
$342.00 - $570.00
$342.00 - $570.00
$342.00
45ul Platinum Sample Pans for PE N5356016 for PerkinElmer/PE PT Crucibles | NEXACULE - Sample pan /crucible

45ul Platinum Sample Pans for PE N5356016 for PerkinElmer/PE PT Crucibles | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$484.50 - $1,197.00
$484.50 - $1,197.00
$484.50
in stock

Type Sample pan /crucible Suitable for PerkinElmer TGA6/As6 STA 8000,TGA 4000,STA 6000 Part NO A-PA-134-5 same design as PE N5356016 T...

View full details
$0.00 - $0.00
$0.00
$484.50 - $1,197.00
$484.50 - $1,197.00
$484.50
Platinum/PT Crucible D5*H4mm for PerKinElmer/PE Platinum Pans Thermal Analysis Consumables | NEXACULE - Sample pan /crucible

Platinum/PT Crucible D5*H4mm for PerKinElmer/PE Platinum Pans Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$209.00 - $1,026.00
$209.00 - $1,026.00
$209.00
in stock

  Type Sample pan /crucible Suitable for PE  Part No. A-PA-134-6 Size D5*4mm Temperature Range :-150～1600℃ Lid  Without |If need lid c...

View full details
$0.00 - $0.00
$0.00
$209.00 - $1,026.00
$209.00 - $1,026.00
$209.00
Platinum Lids Size D5mm for PerKinElmer/PE Platinum Sample Pans Thermal Analysis Consumables | NEXACULE - Lid
Platinum Lids Size D5mm for PerKinElmer/PE Platinum Sample Pans Thermal Analysis Consumables | NEXACULE - Lid

Platinum Lids Size D5mm for PerKinElmer/PE Platinum Sample Pans Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$228.00
$228.00 - $228.00
$228.00
in stock

Type lid Suitable for PE Size D5mm Part No. A-PA-134-7 Temperature Range :-150～1600℃ Matching crucible Platinum/PT Crucible D5*H4m...

View full details
$0.00 - $0.00
$0.00
$228.00
$228.00 - $228.00
$228.00

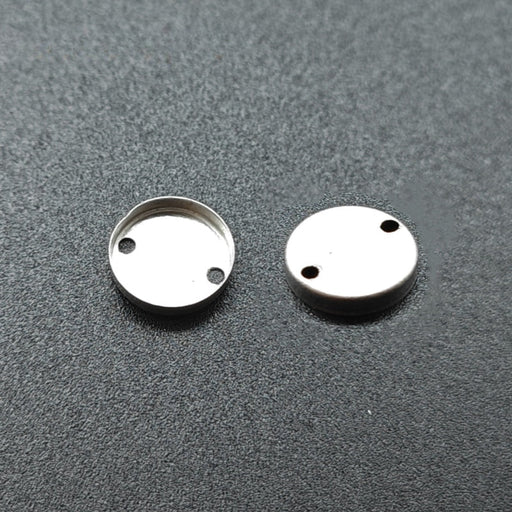

Vented Platinum Sample Holder Covers for PE 04190299 for PerKinElmer/PE Thermal analysis consumables | NEXACULE - Sample Holder Cover
Vented Platinum Sample Holder Covers for PE 04190299 for PerKinElmer/PE Thermal analysis consumables | NEXACULE - Sample Holder Cover

Vented Platinum Sample Holder Covers for PE 04190299 for PerKinElmer/PE Thermal analysis consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$351.50 - $676.40
$351.50 - $676.40
$351.50
in stock

Type Sample pan /crucible Suitable for  PerKinElmer Diamond DSC, DSC 8000 and DSC 8500 sample holders Part No. A-PE-17 equivalent to PE 041...

View full details
$0.00 - $0.00
$0.00
$351.50 - $676.40
$351.50 - $676.40
$351.50

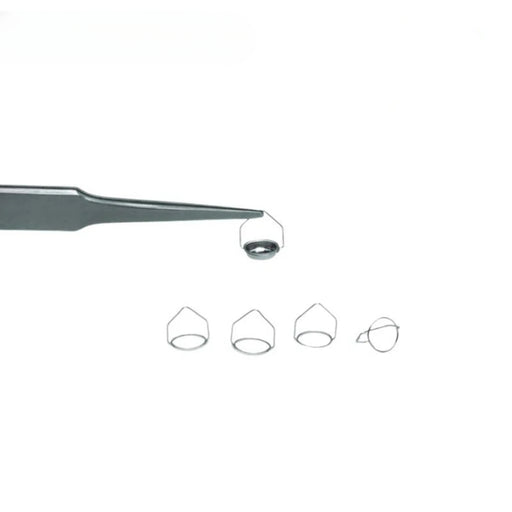

Platinum Sample Pan Kit with Stirrup for PE-N5190280 for PerKinElmer PT Crucibles Thermal Analysis Consumables | NEXACULE - Sample pan /crucible
Platinum Sample Pan Kit with Stirrup for PE-N5190280 for PerKinElmer PT Crucibles Thermal Analysis Consumables | NEXACULE - Sample pan /crucible

Platinum Sample Pan Kit with Stirrup for PE-N5190280 for PerKinElmer PT Crucibles Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$527.25
$527.25 - $527.25
$527.25
in stock

  Type Sample pan /crucible Suitable for PE  Part No. A-PE-18 same design as PE-N5190280 Lid  Without Material PLATINUM Stocking time ...

View full details
$0.00 - $0.00
$0.00
$527.25
$527.25 - $527.25
$527.25

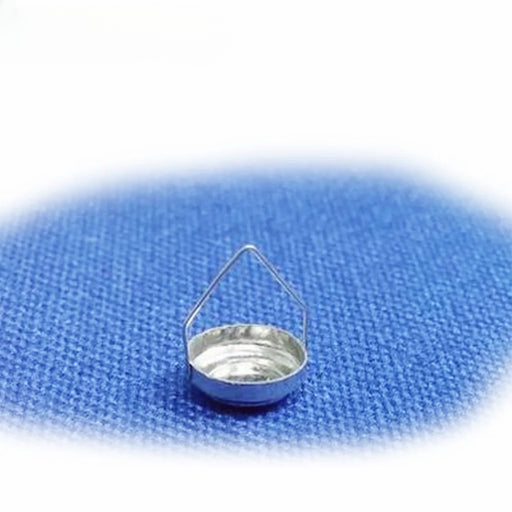

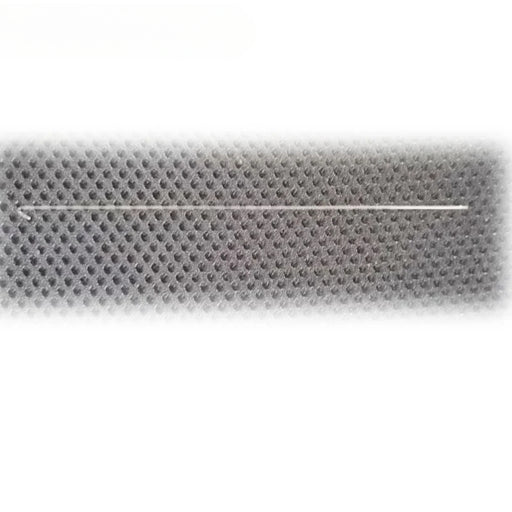

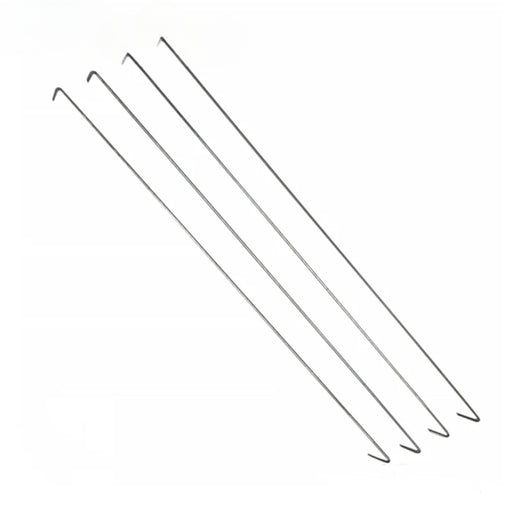

Platinum Hangdown Wire Kit for PE N5190276 for PerkinElmer/PE Thermal Analysis Consumables | NEXACULE - Hangdown
Platinum Hangdown Wire Kit for PE N5190276 for PerkinElmer/PE Thermal Analysis Consumables | NEXACULE - Hangdown

Platinum Hangdown Wire Kit for PE N5190276 for PerkinElmer/PE Thermal Analysis Consumables | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$427.50
$427.50 - $427.50
$427.50
in stock

Item Hangdown Suitable for PerkinElmer DSC 8000 Part No. A-PE-19 same design as PE N5190276 Material Platinum Stocking time 1-7 work...

View full details
$0.00 - $0.00
$0.00
$427.50
$427.50 - $427.50
$427.50

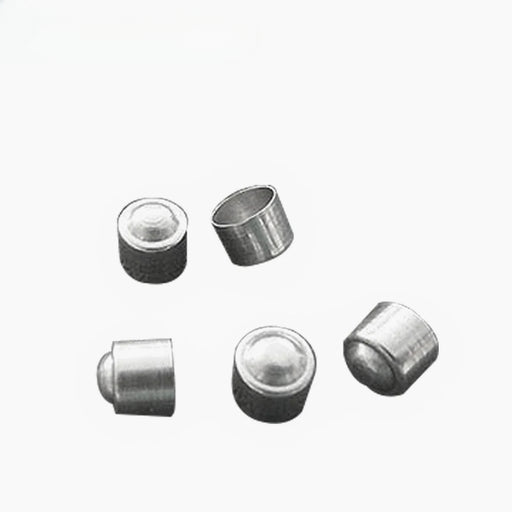

30μl Reusable Stainless Steel High Pressure Capsules for PE B0182901 for PerKinElmer/PE with Seal | NEXACULE - Reusable Capsules and Copper seals

30μl Reusable Stainless Steel High Pressure Capsules for PE B0182901 for PerKinElmer/PE with Seal | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$285.00 - $783.75
$285.00 - $783.75
$285.00
in stock

  Type Reusable Capsules and Copper seals Suitable for PE DSC 4000, DSC 6000, DSC 8000, DSC 8500, Diamond DSC, Pyris 1 DSC, DSC 7, DSC 6, Pyri...

View full details
$0.00 - $0.00
$0.00
$285.00 - $783.75
$285.00 - $783.75
$285.00

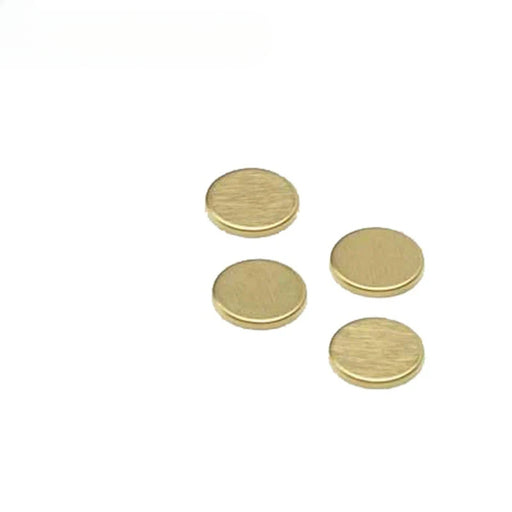

Gold Plated Copper Sealing Disks for PE B0182905 for PerkinElmer/PE | NEXACULE - seals/disk

Gold Plated Copper Sealing Disks for PE B0182905 for PerkinElmer/PE | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$237.50 - $722.00
$237.50 - $722.00
$237.50
in stock

Type seals/disk Suitable for PE DSC 6000, DSC 8000, Pyris 1 DSC, Jade DSC, DSC 4000,  Diamond DSC, DSC 6, DSC 8500, Pyris 6 DSC, DSC 7 ...

View full details
$0.00 - $0.00
$0.00
$237.50 - $722.00
$237.50 - $722.00
$237.50

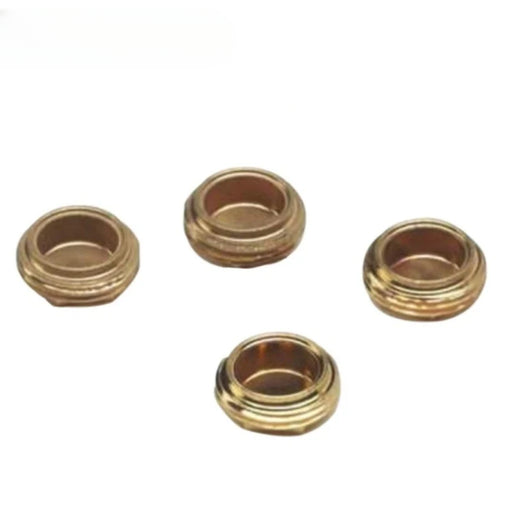

30μl Gold Plated Stainless Steel High Pressure Capsules for PE B0182902 for PerkinElmer/PE | NEXACULE - Reusable Capsules
30μl Gold Plated Stainless Steel High Pressure Capsules for PE B0182902 for PerkinElmer/PE | NEXACULE - Reusable Capsules

30μl Gold Plated Stainless Steel High Pressure Capsules for PE B0182902 for PerkinElmer/PE | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$427.50 - $774.25
$427.50 - $774.25
$427.50
in stock

Type Reusable Capsules  Suitable for PE DSC 6/7/4000/6000/8000/8500/Jade DSC/Diamond DSC/PYRIS 1 DSC/PYRIS 6 DSC Part NO A-PE-23 same design...

View full details
$0.00 - $0.00
$0.00
$427.50 - $774.25
$427.50 - $774.25
$427.50

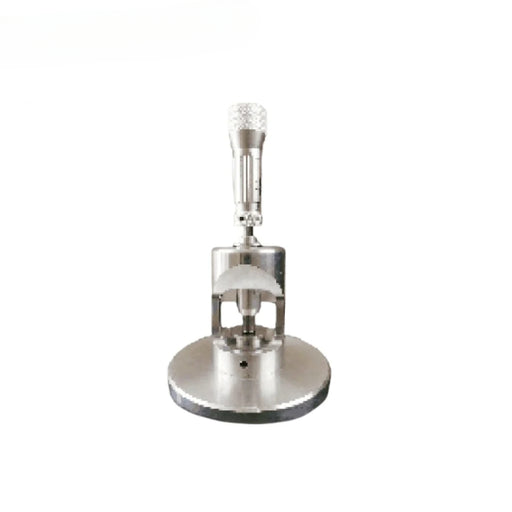

High Pressure Capsule Sealing Tool for PE B0182864 for PerkinElmer/PE (OEM Design) | NEXACULE - Sample pan /crucible sealing press

High Pressure Capsule Sealing Tool for PE B0182864 for PerkinElmer/PE (OEM Design) | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$1,852.50
$1,852.50 - $1,852.50
$1,852.50
in stock

Type Sample pan /crucible sealing press Suitable for For PE  High Pressure Crucible Part NO A-PP-137-9 same design as PE-B0182864 Set ...

View full details
$0.00 - $0.00
$0.00
$1,852.50
$1,852.50 - $1,852.50
$1,852.50

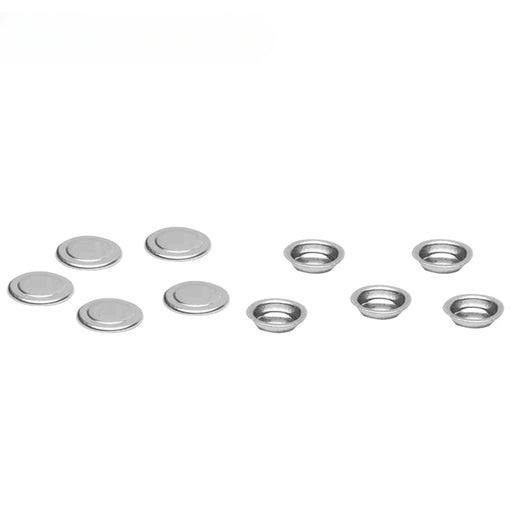

20μl Volatile Aluminum Sample Pans and Covers for PE 02190062 for PerKinElmer/PE Aluminum Pans | NEXACULE - Sample pan /crucible with lid

20μl Volatile Aluminum Sample Pans and Covers for PE 02190062 for PerKinElmer/PE Aluminum Pans | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$166.25 - $418.00
$166.25 - $418.00
$166.25
in stock

  Type Sample pan /crucible with lid Suitable for PE  Part NO A-PE-29 same design as PE-02190062 Capacity 20 ul   Lid  With  Materia...

View full details
$0.00 - $0.00
$0.00
$166.25 - $418.00
$166.25 - $418.00
$166.25
60μl Stainless Steel Pans Covers and O-Rings for PE 03190029 for PerkinElmer/PE Thermal Analysis Sample Pans | NEXACULE - Sample pan /crucible
60μl Stainless Steel Pans Covers and O-Rings for PE 03190029 for PerkinElmer/PE Thermal Analysis Sample Pans | NEXACULE - Sample pan /crucible

60μl Stainless Steel Pans Covers and O-Rings for PE 03190029 for PerkinElmer/PE Thermal Analysis Sample Pans | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$1,377.50
$1,377.50 - $1,377.50
$1,377.50
in stock

  Type Sample pan /crucible Suitable for PE DSC 8000, Pyris 1 DSC, Diamond DSC, DSC 8500 Part NO A-PE-32 same design as PE-03190029 Includ...

View full details
$0.00 - $0.00
$0.00
$1,377.50
$1,377.50 - $1,377.50
$1,377.50
40μl Autosampler Aluminum Sealed Sample Pans for PE B0143021 for PerkinElmer/PE Aluminium Crucibles | NEXACULE - Sample pan /crucible
40μl Autosampler Aluminum Sealed Sample Pans for PE B0143021 for PerkinElmer/PE Aluminium Crucibles | NEXACULE - Sample pan /crucible

40μl Autosampler Aluminum Sealed Sample Pans for PE B0143021 for PerkinElmer/PE Aluminium Crucibles | NEXACULE

NEXACULE
$0.00 - $0.00
$0.00
$494.00 - $836.00
$494.00 - $836.00
$494.00
in stock

Type Sample pan /crucible Suitable for PE DSC 6/7/4000/6000/8000/8500/Jade DSC/Diamond DSC/ PYRIS 1 DSC/PYRIS 6 DSC Part NO A-PE-...

View full details
$0.00 - $0.00
$0.00
$494.00 - $836.00
$494.00 - $836.00
$494.00

Professional PerkinElmer-Compatible Thermal Analysis Consumables

Our comprehensive selection of thermal analysis consumables is engineered for seamless compatibility with PerkinElmer DSC, TGA, and STA instruments. These precision-manufactured alternatives deliver the same reliability and performance as original equipment while offering significant cost savings for research laboratories and industrial applications.

Why Choose Our PerkinElmer-Compatible Consumables?

  • Guaranteed Compatibility: Precisely engineered for DSC 6000, DSC 8000, TGA 4000, STA 6000/8000 series
  • Premium Materials: High-purity alumina ceramic, platinum, aluminum, graphite, and stainless steel options
  • Significant Savings: Save up to 60% compared to original equipment manufacturer pricing
  • Quality Assurance: Each batch tested for dimensional accuracy and thermal performance
  • Immediate Availability: Most consumables in stock for fast shipping worldwide

Compatible PerkinElmer Instrument Series

DSC Series: DSC 4000, DSC 6000, DSC 8000, DSC 8500, Diamond DSC, Pyris 1 DSC, Pyris 6 DSC, Jade DSC

TGA Series: TGA 4000, TGA 7, TGA 8000, Pyris 1 TGA, TGA6/AS6

STA Series: STA 6000, STA 8000 (Simultaneous TGA-DSC)

Legacy Systems: DTA7, DTA1700, and other discontinued models

Material Specifications for PerkinElmer Systems

Material Type Volume Options Max Temperature Compatible Instruments Typical Applications
Aluminum 20-60μl 600°C DSC 6000/8000, Pyris DSC Polymer analysis, pharmaceuticals
Alumina Ceramic 40-250μl 1600°C TGA 4000/8000, STA 6000/8000 High-temp decomposition, catalysis
Platinum 45μl 1500°C All DSC/TGA models Trace analysis, research applications
Graphite 40-250μl 2000°C DSC/TGA under inert atmosphere Extreme temperature studies
Stainless Steel 30-60μl 600°C High-pressure applications Pressurized sample analysis

Application Guidelines for PerkinElmer Systems

DSC Applications (DSC 6000/8000 Series)

  • Standard Analysis: 40μl aluminum pans for melting point and glass transition measurements
  • Volatile Samples: 20μl volatile aluminum pans with hermetic sealing for solvents and oils
  • High-Pressure Studies: 30μl stainless steel capsules with copper sealing disks
  • Research Applications: Platinum pans for contamination-free analysis

TGA Applications (TGA 4000/8000 Series)

  • Decomposition Studies: 250μl alumina ceramic pans for thermal stability testing
  • Weight Loss Analysis: Open crucibles for moisture and volatiles determination
  • Catalysis Research: High-volume pans for sufficient sample loading

STA Applications (STA 6000/8000 Series)

  • Simultaneous Analysis: Alumina crucibles with lids for controlled atmosphere studies
  • Material Characterization: Multiple volume options for different sample requirements
  • Process Development: Cost-effective consumables for routine quality control

Product Series Overview

Standard DSC Consumables

Our aluminum sample pans are designed for routine DSC measurements up to 600°C. Available in standard (40μl) and volatile (20μl) configurations with matching covers. Perfect for polymer analysis, pharmaceutical testing, and food science applications.

High-Temperature TGA Consumables

Alumina ceramic crucibles provide excellent thermal stability and chemical resistance for TGA analysis up to 1600°C. Available in multiple volumes (40-250μl) with optional lids for controlled atmosphere studies.

Premium Research Consumables

Platinum consumables offer unmatched purity and chemical inertness for critical research applications. Reusable design provides long-term value for laboratories performing trace analysis or working with aggressive chemicals.

Specialized High-Pressure Systems

Stainless steel capsules with gold-plated copper sealing disks enable pressurized sample analysis up to 6 MPa. Complete with sealing tools and accessories for safe operation.

PerkinElmer Part Number Cross-Reference

Original PE Part Number Description Our Compatible Product Material Volume
02190041 Standard Aluminum Pan A-PE-274 Aluminum 40μl
N5200040 Ceramic Sample Pan A-PA-134 Alumina 250μl
N5356016 Platinum Sample Pan A-PA-134-5 Platinum 45μl
B0182901 High Pressure Capsule A-PE-21 Stainless Steel 30μl
03190025 Graphite Sample Pan A-PS-139 Graphite 40μl

Frequently Asked Questions

Are these consumables compatible with both current and legacy PerkinElmer instruments?

Yes, our consumables are designed to work with both current models (DSC 8000, TGA 4000 series) and legacy systems (Pyris 1, DTA7, etc.). We maintain compatibility across all PerkinElmer instrument generations.

How do I select the right sample pan for my PerkinElmer instrument?

Check your instrument manual for the recommended part number, or contact our technical support team with your instrument model. We provide detailed compatibility charts for all PerkinElmer systems.

What's the difference between standard and volatile aluminum pans?

Standard pans (40μl) are used for routine solid samples, while volatile pans (20μl) feature hermetic sealing to prevent sample loss when analyzing liquids, solvents, or samples that release gases during heating.

Do you offer high-pressure consumables for PerkinElmer DSC systems?

Yes, we provide complete high-pressure solutions including stainless steel capsules, gold-plated copper sealing disks, and sealing tools compatible with PerkinElmer high-pressure DSC accessories.

Quality & Performance Standards

Dimensional Precision

All consumables manufactured to ±0.02mm tolerance ensuring perfect fit in PerkinElmer sample holders and furnaces. Dimensional verification performed on every production batch.

Material Purity

High-purity materials sourced from certified suppliers: >99.5% Al₂O₃ for ceramic consumables, 99.9% Pt for platinum products, and electronic-grade aluminum for sample pans.

Thermal Performance Validation

Each material batch tested for thermal conductivity, expansion characteristics, and temperature stability to ensure consistent DSC/TGA results matching PerkinElmer specifications.

Contamination Control

Manufacturing in ISO 9001 certified facilities with strict contamination control protocols. All consumables cleaned and packaged in controlled environments.

*All PerkinElmer part numbers and instrument models mentioned are for compatibility reference only. We are an independent supplier and not affiliated with PerkinElmer Inc. All trademarks belong to their respective owners.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
