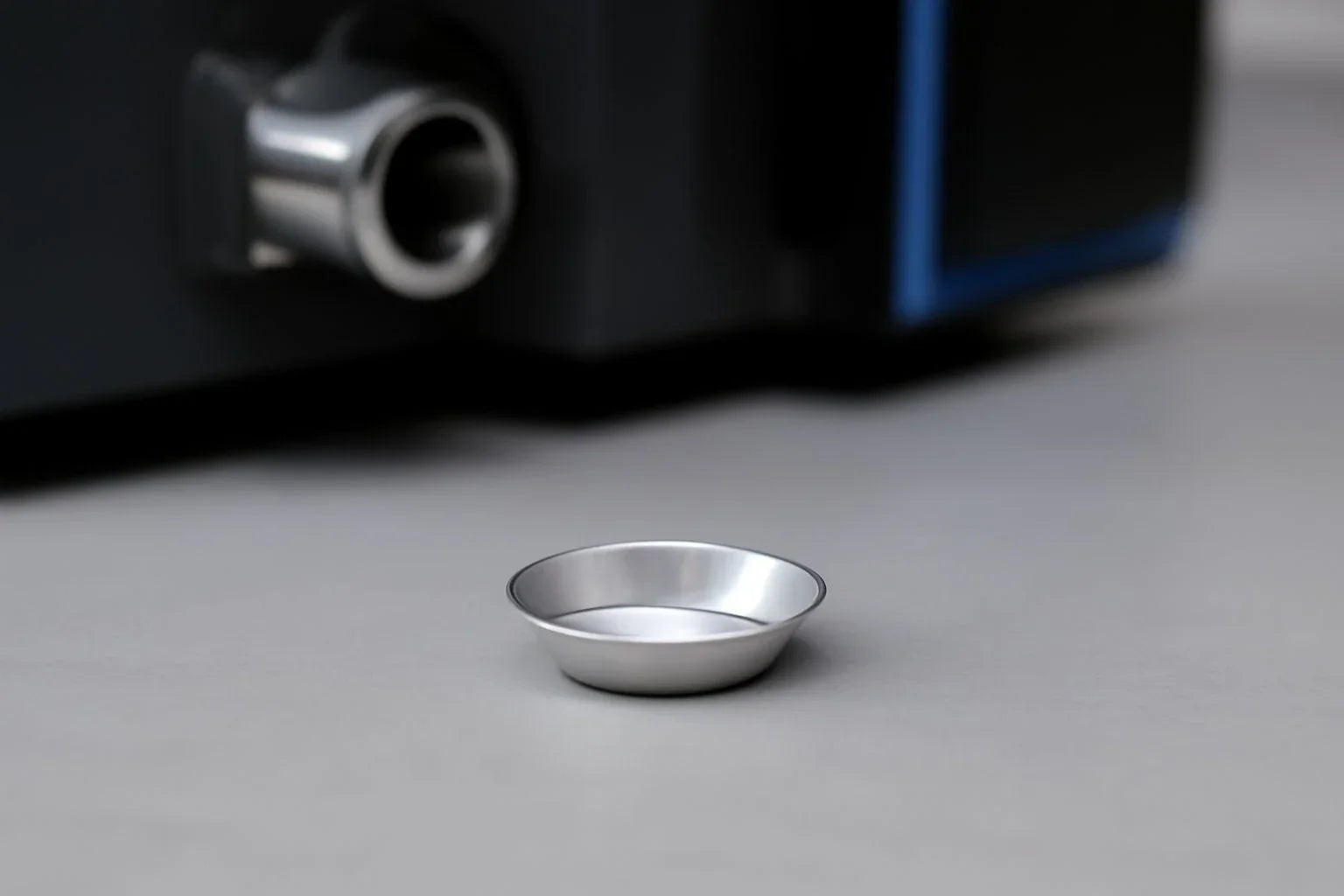

Getting the right results in DSC analysis can be hard if you use the wrong sample pans. Deciding which aluminum pans to use makes a real difference.
Disposable aluminum sample pans designed for DSC need strict technical parameters. Material, thickness, and size all affect heat transfer and data accuracy. Proper pans help labs get repeatable, trusted results.
Labs want results that are correct the first time. Wrong pan specifications can slow experiments or cause misleading data. I learned this after seeing many labs waste time chasing errors caused by pan choices. When you know what makes a pan work for your test, you can plan your work with confidence.
What Are the Ideal Dimensions for Disposable Aluminum Sample Pans in DSC?
Small differences in pan diameter or depth can ruin a DSC experiment. Many scientists struggle because they use pans that do not fit the sensor well enough.
The ideal dimensions for disposable aluminum DSC pans are usually 6.5–7.0 mm in diameter and 2.5–3.0 mm in depth. These sizes provide proper contact and sample volume for reliable results.
DSC Sample Pan Dimensions: Recommended Sizes and Impact
| Parameter | Recommended Value | Impact (Why It Matters) |
|---|---|---|
| Diameter | 6.5–7.0 mm | Ensures full contact with sensor, steady heat flow |
| Depth | 2.5–3.0 mm | Holds enough sample, prevents spills and keeps results steady |
| Wall Height | 2.0–2.8 mm | Confines sample, lowers risk of sample loss at high temperature |
| Rim Thickness | 0.1 mm (typical) | Helps crimping or sealing without leaks |
Dimensions can change a little based on the instrument brand or the kind of test you plan. A pan that is too big may sit unevenly, while a pan too small may not absorb heat evenly. I have seen labs miss signals in their thermograms because they did not use the right size pans. For accurate calorimetry, always match the pan’s size to your equipment’s recommendations and the sample volume you want to test.
How Does the Thickness of Aluminum Affect DSC Sample Pan Performance?
Pans with the wrong thickness may crack or warp, or react too slowly to heating. Many analysts do not realize how much this matters for sensitive runs.
Thin pans transfer heat fast but lose stability above 300°C, while thicker 0.10–0.15 mm pans resist warping and work well up to 600°C. Choose thickness based on your test’s maximum temperature.
Aluminum Pan Thickness: Effects on Analysis and When to Choose Which
| Thickness (mm) | Common Use | Pros | Cons |
|---|---|---|---|
| 0.05–0.08 | Low-temp, quick studies | Fast thermal response, better resolution | Easy to deform, not stable at high temps |
| 0.1–0.15 | Standard and high-temp | Better strength and sealing | Slower heating at low temp, may use more pan mass correction |
The thermal conductivity of aluminum makes it good for heat transfer, but pan thickness controls how much and how quickly heat moves. For polymer melting or glass transition work, labs often choose thinner pans to see small thermal signals. For samples that swell or break down above 300°C, thicker pans provide the safety margin I count on to avoid leaks or pan failure.
What Is the Temperature Range of Aluminum Pans for DSC?
Some people push sample pans past safe limits, which risks loss of data and even equipment damage. This concern is common when labs use mixed or unknown alloys.
Disposable aluminum DSC pans usually handle -100°C to 600°C. Below -100°C, pans may become brittle. Above 600°C, pans may lose shape or melt depending on the alloy.
DSC Aluminum Pan Temperature Ranges—Alloys and Limits
| Alloy Type | Low Temp Limit (°C) | High Temp Limit (°C) | Use Case |
|---|---|---|---|
| Aluminum 1100 | -100°C | 600°C | General DSC work, stable under most needs |
| 6061 Alloy | -90°C | ~600°C | For tests with harsh chemicals or higher temps |
The melting point for most aluminum alloys is about 660°C, but pan shape and function change before that. I stick to the safe ranges for my DSC work to keep experiments and equipment safe. Always get the alloy type and range from your supplier, and check that no coating or surface oil is left that could react during the run.
How Do You Ensure Precision with Aluminum Sample Pans in DSC?
Poor pan precision leads to randomness in baseline and calibration. This is one of the most common causes for lack of repeatability across runs or machines.
Choose aluminum pans with a strict tolerance of ±0.01 mm for all main dimensions. Use only clean, burr-free pans with clear lot records to guarantee reliable thermal analysis.
Factors for Pan Precision: What to Check Every Time
| Parameter | Specification / Tolerance | Why It Matters |
|---|---|---|
| Diameter & depth tolerance | ±0.01 mm | Direct control over sensor contact and baseline noise |
| Surface finish | No burrs or sharp edges | Prevents leaks, lowers cross-contamination risk |
| Cleanliness | 100% residue-free, no oil or dust | Prevents baseline drift and keeps measurements true |
| Batch traceability | Each lot labeled, source recorded | Links pan performance to batch, ensures repeat checks |
The smallest shape error can cause the pan to sit at an angle or have poor thermal contact. I always check pans under a magnifier first, and if I see even a small burr or bend, I do not use that pan. Manufacturing controls and proper quality management keep labs from chasing errors that are really just a bad pan.
Conclusion
Getting your DSC results right comes from picking aluminum pans with the proper size, thickness, temperature range, and true-to-spec details.
