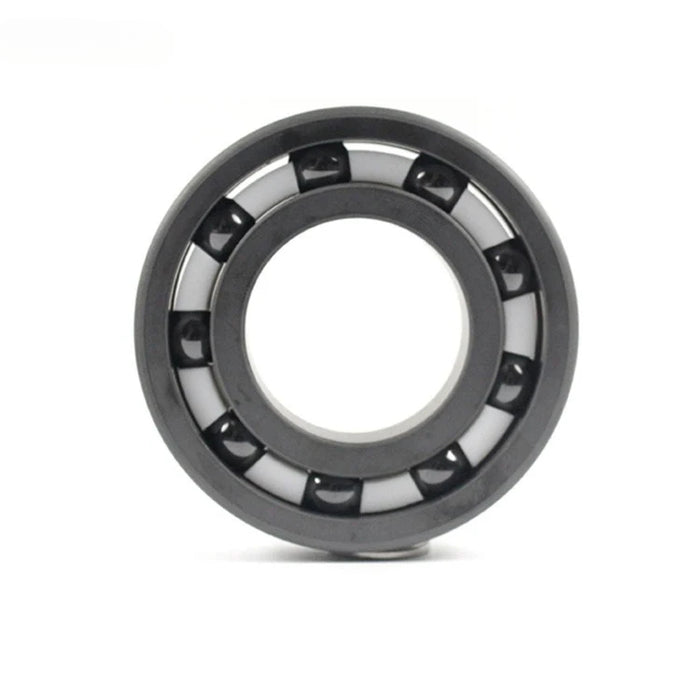

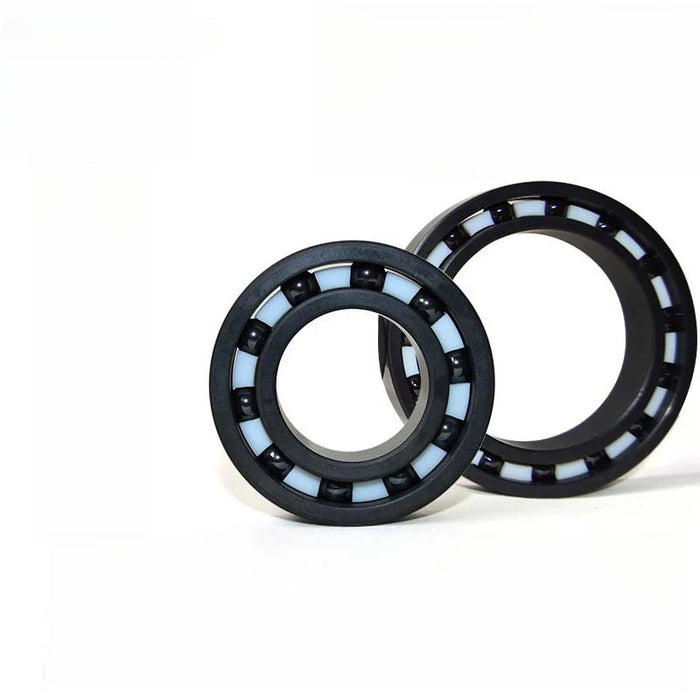

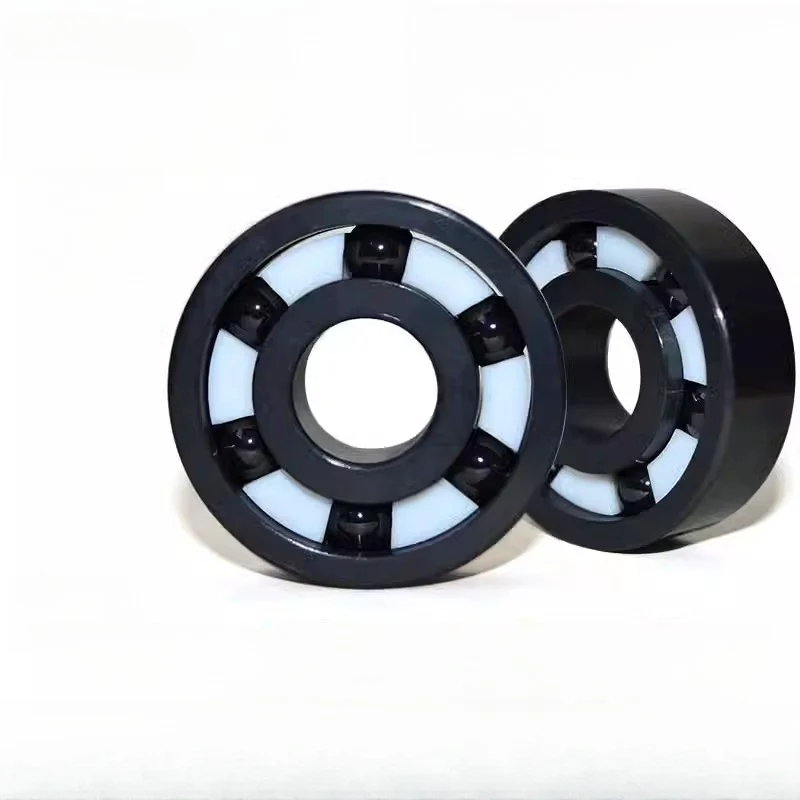

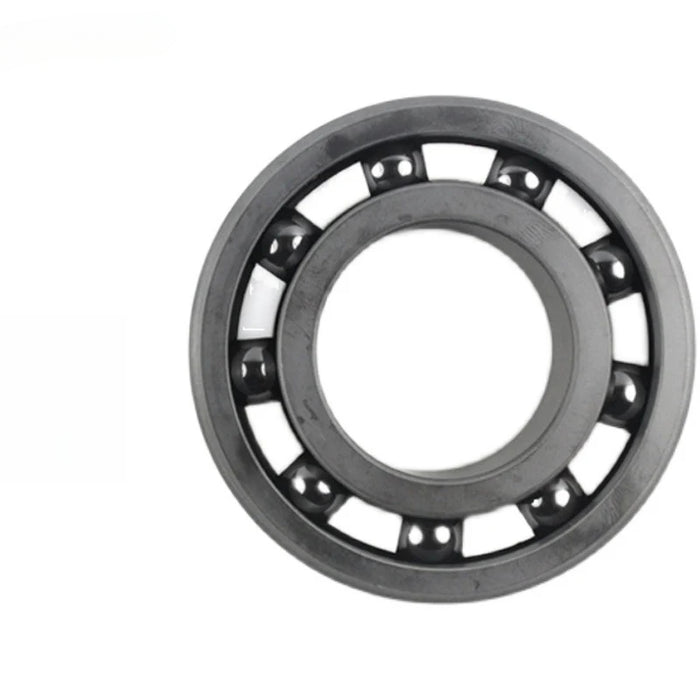

Full Silicon Carbide Bearings Double Sealed Sic Bearings | NEXACULE - Silicon Carbide Bearing

Full Silicon Carbide Bearings Double Sealed Sic Bearings | NEXACULE

by NEXACULE
$0.00 - $0.00
$0.00
$79.00
$79.00 - $359.00
$79.00

Silicon Carbide Bearing Description:

  • Type:Silicon Carbide Bearing
  • Material:Silicon Carbide Bearing
  • Quantity:1pcs,If there are need more quantites, get wholesale price please contact us.E-mail us at info@nexacule.com
  • Customize:If you need others size,we can customize as your size.E-mail us at info@nexacule.com
  • Import duties or taxes are not included in the item price or shipping charges. These charges are the buyer's responsibility.

Silicon Carbide Bearing Applications:

Silicon carbide (SiC) bearings excel in demanding environments where traditional bearings fail. Key applications include:

  • High-Temperature: Industrial furnaces, kilns, heat treatment.
  • Corrosive Environments: Chemical processing, oil & gas, marine.
  • High-Speed: Machining, turbomachinery, aerospace.
  • Semiconductor Manufacturing: Wafer processing equipment.

Silicon Carbide Bearing Specification:

                           Specification of bearing ceramic materials:
Item Unit Silicon nitride Si3N4 Zirconia ZrO2 Alumina 99.5% A12O3 Silicon carbide Bearing steel
Density g/cm³ 3.23 6.05 3.92 3.12 7.85
water absorption % 0 0 0 0 0
Thermal expansion coefficient 10-6/K 3.2 10.5 8.5 3 12.5
Young's modulus of elasticity Gpa 300 210 340 440 208
Poisson's ratio ∕ 0.26 0.3 0.22 0.17 0.3
Hardness (Hv) Mpa 1500 1200 1650 2800 700
Bending strength (room temperature) Mpa 720 950 310 390 520 (tensile strength)
Bending strength (700℃) Mpa 450 210 230 380 ∕
Compressive strength (room temperature) Mpa 2300 2000 2200 1800 ∕
Fracture toughness Mpa*m 6.2 10 4.2 3.9 25
Thermal conductivity (room temperature) W/m*k 25 2 26 120 40
Specific resistivity (room temperature) Ω*mm2/m >1013 >1015 >1016 >103 0.1-1
Maximum working temperature (without load) ℃ 1050 750 1750 1550 300
Acid and alkali corrosion resistance ∕ Strong Strong Strong Strong Weak
