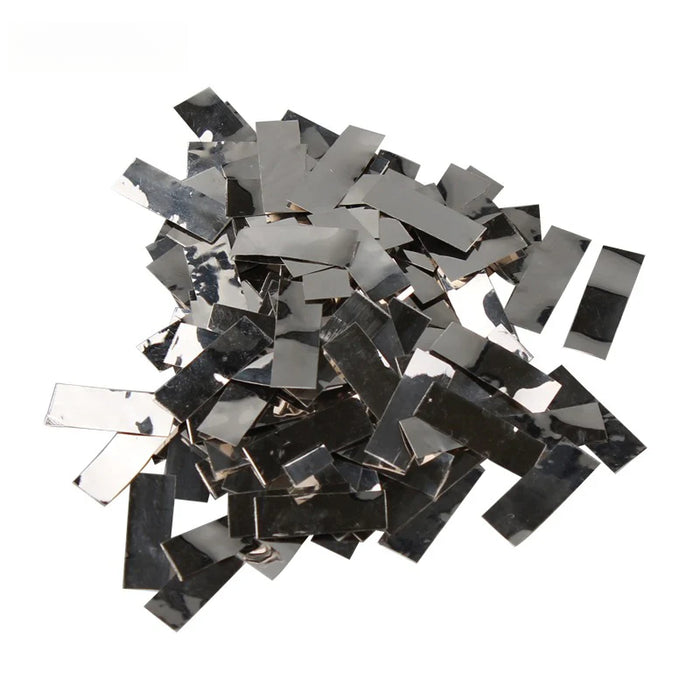

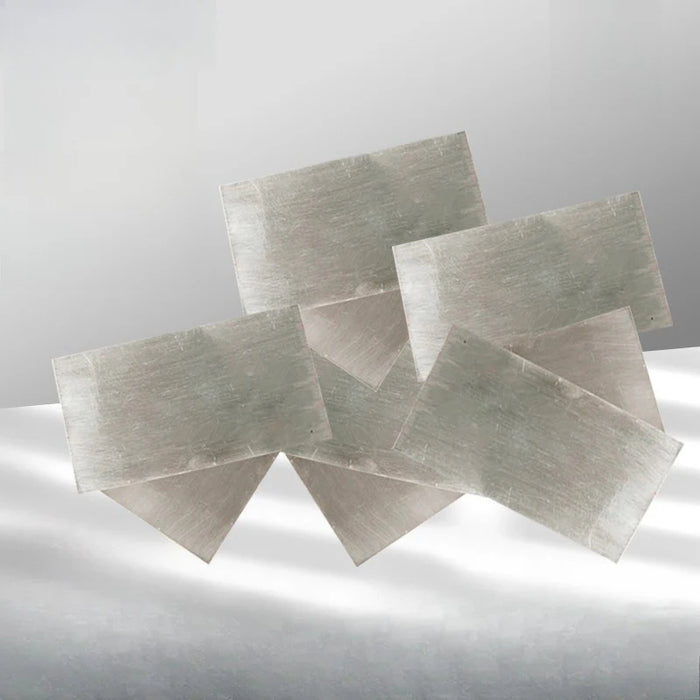

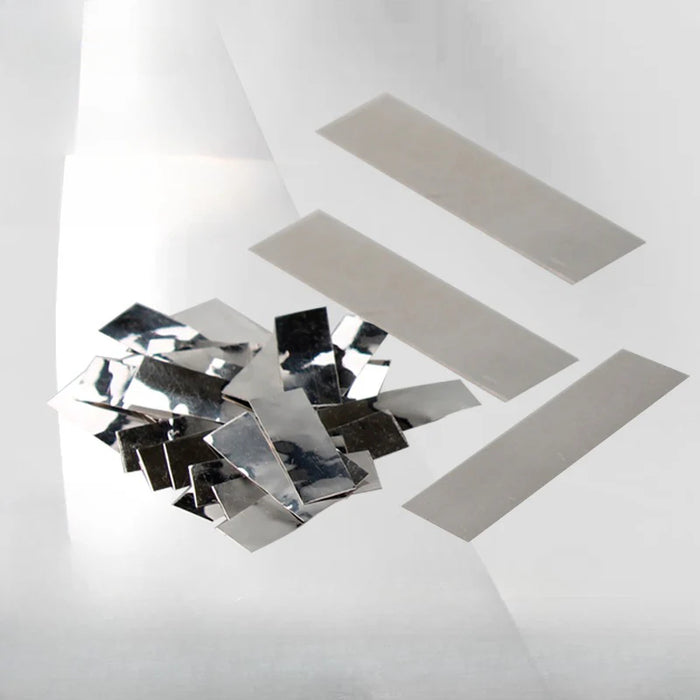

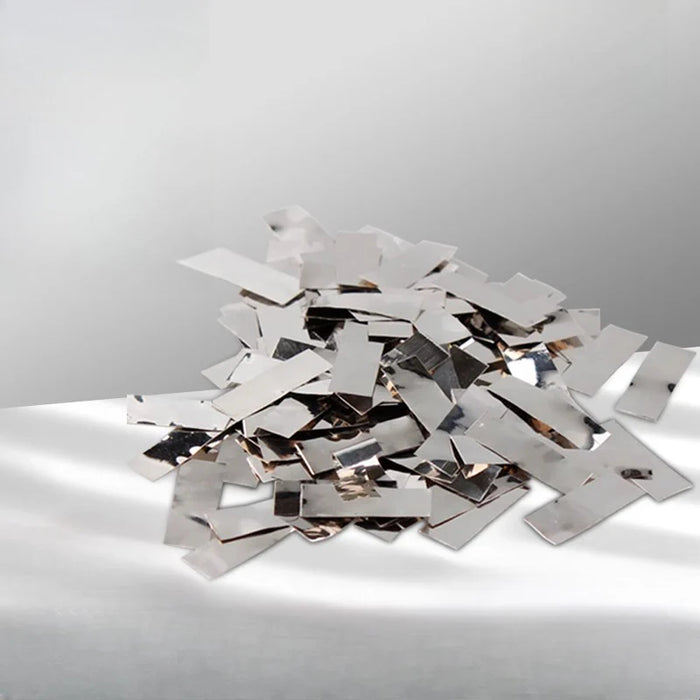

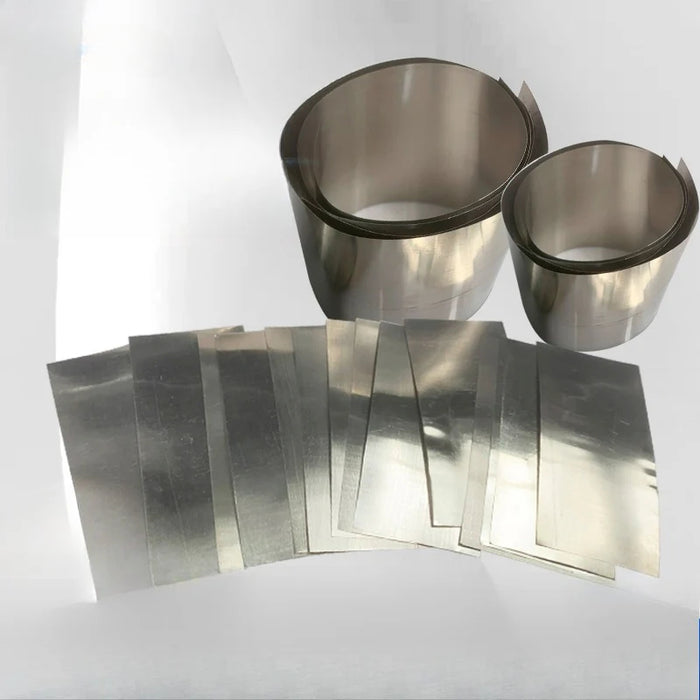

Laboratory-Grade Platinum Foil & Sheets - 99.95% Pure

Product Overview

Discover the versatility and reliability of our premium laboratory-grade platinum foil and sheets, manufactured to the highest purity standards (99.95%) for demanding scientific applications. Our platinum products offer exceptional chemical inertness, thermal stability, and electrical conductivity, making them indispensable for research laboratories, analytical chemistry, and advanced materials science applications worldwide.

Material Specifications

📊 Purity & Composition

Property	Specification	Significance
Platinum Purity	99.95% minimum	Exceptional chemical inertness
Trace Elements	<0.05% total	Minimal interference in analysis
Major Impurities	Pd <0.02%, Rh <0.01%	Controlled composition
Surface Finish	Bright annealed	Optimal surface properties
Grain Structure	Fine, uniform	Consistent performance

🔬 Physical Properties

Property	Value	Laboratory Significance
Melting Point	1,772°C (3,222°F)	Extreme temperature stability
Density	21.45 g/cm³	High material integrity
Electrical Resistivity	10.6 μΩ·cm (20°C)	Excellent conductivity
Thermal Conductivity	71.6 W/m·K	Uniform heat distribution
Coefficient of Expansion	8.8 × 10⁻⁶/°C	Dimensional stability
Hardness (Annealed)	40 HV	Workability and durability

Available Dimensions & Configurations

📐 Standard Foil Thicknesses

Thickness (mm)	Thickness (inches)	Typical Applications	Price Range
0.025	0.001"	Electrodes, thin film substrates	$39-$89
0.05	0.002"	Catalytic membranes, sensors	$79-$189
0.1	0.004"	Working electrodes, heating elements	$149-$389
0.25	0.010"	Crucible liners, chemical vessels	$359-$899
0.5	0.020"	High-current electrodes, substrates	$699-$1,799
1.0	0.040"	Structural components, boat liners	$1,399-$2,699

📏 Standard Sheet Sizes

Dimensions (mm)	Dimensions (inches)	Surface Area	Typical Uses
25 × 25	1" × 1"	6.25 cm²	Small electrodes, test samples
50 × 50	2" × 2"	25 cm²	Working electrodes, analysis plates
75 × 75	3" × 3"	56.25 cm²	Larger electrodes, substrates
100 × 100	4" × 4"	100 cm²	Heating plates, large area catalysts
Custom sizes	Up to 300 × 300	Variable	Specialized applications

Laboratory Applications

⚡ Electrochemistry & Electroanalysis

Working Electrodes

• Cyclic Voltammetry: Inert electrode for redox studies
• Potentiometry: Reference and indicator electrodes
• Electrosynthesis: Catalytic electrode for organic synthesis
• Fuel Cell Research: Catalyst support and current collector

Electroplating & Surface Modification

• Anodic Dissolution: Counter electrode in metal deposition
• Electropolishing: Surface finishing applications
• Electrodialysis: Ion separation processes
• Electrochemical Sensors: Biosensor fabrication

🔥 High-Temperature Applications

Thermal Analysis

• DSC/TGA Substrates: Sample support plates
• Crucible Liners: Contamination prevention
• Heating Elements: Uniform temperature distribution
• Temperature Sensors: RTD element construction

Catalytic Studies

• Catalyst Supports: High surface area applications
• Reaction Vessels: Inert container materials
• Gas Sensors: Selective catalytic detection
• Microreactors: Lab-on-chip applications

🧪 Analytical Chemistry

Sample Preparation

• Digestion Vessels: Acid-resistant containers
• Evaporation Plates: Sample concentration
• Fusion Crucibles: High-temperature sample prep
• Weighing Boats: Precision analytical work

Spectroscopic Applications

• IR Windows: Transmission spectroscopy
• X-ray Targets: Analytical X-ray sources
• Optical Mirrors: Reflective surfaces
• Plasma Sources: ICP-MS applications

🔬 Materials Science & Nanotechnology

Thin Film Research

• Substrate Materials: Epitaxial growth studies
• Sputter Targets: Thin film deposition
• Contact Layers: Electronic device fabrication
• Diffusion Barriers: Multilayer structures

Nanomaterial Synthesis

• Catalyst Beds: Nanoparticle synthesis
• Growth Substrates: Carbon nanotube growth
• Template Materials: Nanostructure fabrication
• Annealing Substrates: Heat treatment applications

Technical Advantages

🏆 Superior Chemical Resistance

Acid Resistance

• Aqua Regia: Completely resistant to strongest acids
• Hydrofluoric Acid: Unaffected by HF solutions
• Hot Acids: Stable in concentrated acids at elevated temperatures
• Mixed Acids: Resistant to complex acid mixtures

Chemical Inertness

• Non-catalytic: No unwanted side reactions
• Non-contaminating: No leaching into samples
• Biocompatible: Safe for biological applications
• Chemically stable: Long-term consistency

⚡ Excellent Electrical Properties

Conductivity Characteristics

• Low Resistance: Minimal voltage drop
• Stable Contacts: Consistent electrical connections
• No Oxidation: Maintains conductivity over time
• Wide Frequency Response: RF applications compatible

🌡️ Outstanding Thermal Properties

Temperature Performance

• High Melting Point: Stable to 1772°C
• Thermal Shock Resistance: Rapid heating/cooling cycles
• Uniform Heat Distribution: Excellent thermal conductivity
• Dimensional Stability: Low thermal expansion

Fabrication & Customization

🔧 Custom Sizing Options

Available Customizations

• Thickness Range: 0.01mm to 5.0mm
• Sheet Sizes: Up to 300mm × 300mm
• Strip Widths: 1mm to 100mm
• Special Shapes: Circles, rectangles, complex geometries

Manufacturing Processes

• Cold Rolling: Precise thickness control
• Annealing: Stress relief and grain structure optimization
• Surface Finishing: Polished, matte, or textured surfaces
• Edge Processing: Clean, burr-free edges

⚙️ Specialized Processing

Surface Treatments

• Electropolishing: Ultra-smooth surfaces
• Chemical Cleaning: Contamination-free preparation
• Passivation: Enhanced corrosion resistance
• Texturing: Increased surface area

Quality Control & Testing

📋 Manufacturing Standards

Quality Assurance

• Chemical Analysis: ICP-MS verification of purity
• Dimensional Inspection: Precision measurement verification
• Surface Quality: Microscopic examination
• Mechanical Testing: Strength and ductility verification

🔍 Testing Procedures

Material Verification

• X-ray Fluorescence: Elemental composition analysis
• Hardness Testing: Vickers hardness measurement
• Thickness Measurement: Micrometer precision verification
• Surface Roughness: Ra and Rz measurements

Performance Testing

• Electrical Conductivity: Four-point probe measurement
• Thermal Cycling: Temperature stability verification
• Corrosion Testing: Chemical resistance validation
• Stress Analysis: Internal stress measurement

Handling & Storage Guidelines

🔒 Proper Handling Techniques

Safe Handling Practices

• Clean Gloves: Prevent contamination from skin oils
• Plastic Tweezers: Avoid scratching delicate surfaces
• Clean Workspace: Dust-free handling environment
• Static Control: Anti-static precautions for thin foils

📦 Storage Requirements

Optimal Storage Conditions

• Dry Environment: <40% relative humidity
• Clean Storage: Dust-free containers
• Flat Storage: Prevent bending or creasing
• Separation: Interleaving paper for stacked sheets

Fabrication Guidelines

🔨 Working with Platinum Foil

Cutting & Shaping

• Sharp Scissors: Clean cuts for thin foils
• Precision Shears: Straight edges for thicker sheets
• Die Cutting: Complex shapes and high-volume production
• Laser Cutting: Precise, heat-affected zone considerations

Joining Techniques

• Resistance Welding: Small-scale joining
• Diffusion Bonding: High-strength joints
• Brazing: Using platinum-compatible alloys
• Mechanical Fastening: Clamping and crimping methods

Application-Specific Selection Guide

🎯 Electrode Applications

Thickness Selection

Application	Recommended Thickness	Reason
Microelectrodes	0.025-0.05 mm	Minimal solution resistance
Working electrodes	0.1-0.25 mm	Mechanical stability
Counter electrodes	0.25-0.5 mm	High current capacity
Heating elements	0.5-1.0 mm	Power handling capability

🌡️ High-Temperature Applications

Configuration Guidelines

• Crucible Liners: 0.25-0.5mm thickness for thermal cycling
• Heating Substrates: 1.0mm thickness for uniform temperature
• Temperature Sensors: 0.05-0.1mm for fast response
• Catalyst Supports: 0.1-0.25mm for surface area optimization

Comparison with Alternative Materials

📊 Material Performance Comparison

Property	Platinum	Gold	Palladium	Titanium
Chemical Inertness	Excellent	Very Good	Good	Good
Temperature Limit	1772°C	1064°C	1554°C	1668°C
Electrical Conductivity	Very Good	Excellent	Good	Poor
Cost	High	Very High	High	Low
Catalytic Activity	High	Low	High	Moderate

Troubleshooting Common Issues

🔧 Surface Contamination

Symptoms: Discoloration, poor electrical contact, altered catalytic activity

Causes & Solutions:

• Fingerprints → Clean with alcohol, handle with gloves
• Oxidation products → Polish with diamond paste
• Chemical deposits → Ultrasonic cleaning in appropriate solvents
• Scratches → Electropolishing restoration

⚡ Electrical Contact Problems

Symptoms: High resistance, intermittent connections

Causes & Solutions:

• Surface oxide film → Mechanical abrasion or chemical cleaning
• Poor mechanical contact → Improve clamping or welding
• Thermal expansion mismatch → Use flexible connections
• Contamination → Clean all contact surfaces thoroughly

Frequently Asked Questions

Q: What's the difference between platinum foil and platinum sheet?

A: The terms are often used interchangeably, but typically "foil" refers to thicknesses below 0.25mm, while "sheet" refers to thicker materials. Both offer the same chemical and physical properties.

Q: Can platinum foil be soldered using standard techniques?

A: Standard lead-tin solders don't wet platinum well. Use specialized platinum-compatible brazing alloys or resistance welding for permanent joints.

Q: How do I clean platinum foil without damaging it?

A: Platinum is extremely chemically resistant. You can use aqua regia for heavy contamination, or isopropyl alcohol for light cleaning. Avoid abrasive materials that might scratch the surface.

Q: What's the maximum temperature for platinum foil in air?

A: Platinum can be used continuously in air up to 1200°C. At higher temperatures, it may lose material through volatilization and should be used in controlled atmospheres.

Q: Can I anneal platinum foil to make it more workable?

A: Yes, annealing at 800-1000°C in air or inert atmosphere will soften work-hardened platinum and improve its formability.

Ordering & Customization

📋 Standard Package Options

Package Type	Typical Contents	Best For
Sample Pack	Small pieces for testing	Evaluation and method development
Standard Sheet	Single sheet, standard size	Small-scale research projects
Bulk Pack	Multiple sheets or large area	Production and high-volume use
Custom Package	Application-specific configuration	Specialized requirements

⚙️ Custom Fabrication Services

• Precision Cutting: Laser or water-jet cutting to specifications
• Surface Texturing: Controlled roughness for enhanced properties
• Edge Finishing: Polished or deburred edges
• Forming: Simple bends and shapes

Technical Support & Services

🛠️ Expert Consultation

• Material Selection: Optimal thickness and size recommendations
• Application Engineering: Design assistance for specific uses
• Processing Guidance: Fabrication and handling best practices
• Quality Assurance: Testing and certification services

📚 Technical Resources

• Comprehensive material property database
• Application-specific design guides
• Fabrication technique videos
• Troubleshooting manuals

Why Choose NEXACULE Platinum Foil & Sheets?

• Guaranteed Purity: 99.95% minimum with certificates of analysis
• Precision Manufacturing: Tight tolerance control and consistent quality
• Custom Solutions: Tailored to your specific requirements
• Expert Support: Technical assistance from platinum specialists
• Competitive Pricing: Direct manufacturer pricing
• Fast Delivery: Standard sizes in stock for immediate shipment
• Global Shipping: Worldwide delivery with proper documentation

Uses of Platinum Plates:

1. In the field of jewelry and decoration

• Platinum plates are widely used to make high - end jewelry. Due to their excellent luster, durability, and resistance to corrosion, they can be crafted into various exquisite shapes such as rings, necklaces, and earrings. Platinum has a natural white color that never fades, which makes it highly desirable for those seeking long - lasting and stylish accessories.
• In addition, platinum plates can be used for decorative purposes in high - end interior design. For example, they can be made into small plaques or inlays to add a touch of luxury and elegance to furniture, picture frames, or even architectural elements.

2. In the chemical industry

• Platinum is an excellent catalyst. Platinum plates can be used in chemical reactors for various catalytic reactions. For instance, in the petroleum refining industry, they play a crucial role in processes like the reforming of naphtha to increase the octane number of gasoline. Platinum - catalyzed reactions are also important in the production of fertilizers, where they can facilitate certain chemical transformations efficiently.
• In the field of organic synthesis, platinum plates can be used to catalyze reactions such as the hydrogenation of unsaturated compounds. This helps in the production of pharmaceuticals, fine chemicals, and other important organic products.

3. In the electronics industry

• Platinum has good electrical conductivity and stability. Platinum plates can be used as electrodes in some electronic devices. For example, in fuel cells, platinum electrodes are often used because of their ability to efficiently facilitate the electrochemical reactions involved in converting chemical energy into electrical energy.
• They can also be used in some precision electronic instruments as contact materials due to their low and stable contact resistance over time.
