Your Ultimate FAQ: All About DSC Sample Pans Answered?

DSC sample pans seem simple, but many questions arise when selecting and using them. This uncertainty can affect your experiments. Getting clear answers to your DSC pan questions is key to confident and accurate thermal analysis.

This FAQ addresses common questions about DSC sample pan types, handling, compatibility, and where to find reliable information. My goal is to provide you with the essential knowledge for optimal use and better experimental outcomes.

Over my years working with DSC instruments and supplying consumables like those from LabShopX, I’ve heard a lot of questions. I want to share some of the most common ones, along with my practical insights, to help you navigate the choices.

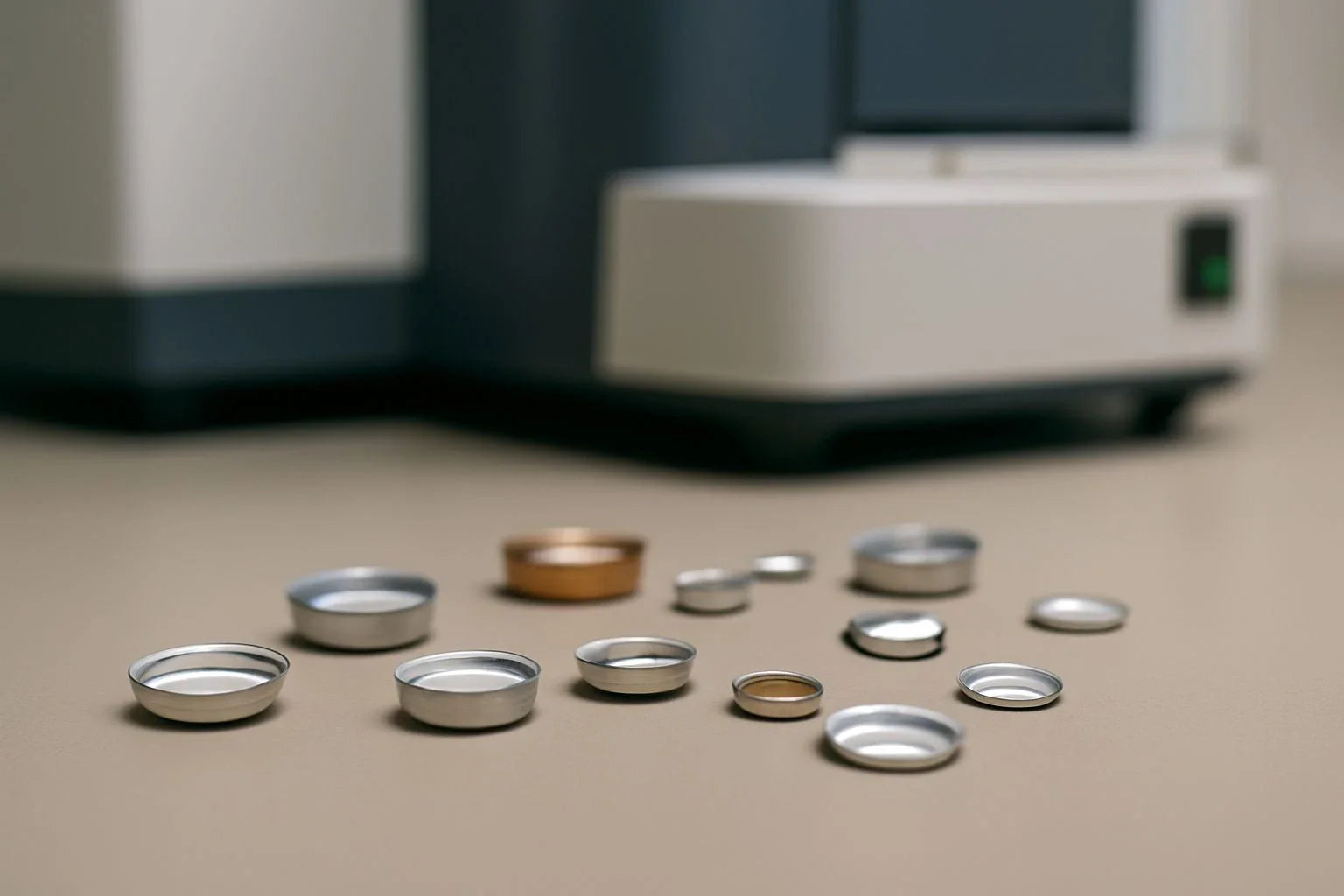

What Are the Different Types of DSC Sample Pans Available Today?

So many pan options exist, it can be confusing to know which one to pick. This choice paralysis can slow down your work. Understanding the main types of DSC sample pans available helps you quickly select the right one for your specific analytical needs.

DSC sample pans vary by material (aluminum, platinum, gold, ceramic, graphite), design (standard, hermetic, high-pressure, vented), and volume. Each type is suited for specific temperature ranges, sample characteristics, and experimental goals, ensuring optimal performance.

It’s true, the variety can seem daunting at first! But it boils down to matching the pan to your job. The most common type I see and supply is the standard aluminum pan. These are versatile, great for temperatures up to about 600°C, and work well for many polymers and organic materials. They often come with lids that can be crimped on loosely or vented. Then we have hermetically sealed pans, also usually aluminum but sometimes gold. These are essential if your sample is volatile – meaning it might evaporate or sublime during heating – or if it contains moisture or solvents you want to retain. The seal prevents mass loss. High-pressure pans are more specialized, typically made of stainless steel or other robust alloys. I recommend these when you need to study reactions under elevated pressure or analyze materials that might generate significant pressure upon decomposition. For high-temperature work, beyond aluminum’s limit, you’ll encounter platinum pans (good up to 1000°C or more), graphite pans (can go very high, but consider atmosphere), and ceramic pans like alumina or zirconia (for extreme temperatures, often >1500°C). Gold pans are prized for their inertness, especially in pharmaceutical applications. Pan volumes also vary, from small (e.g., 20 microliters) for high sensitivity with limited sample, to larger ones (e.g., 100 microliters or more) for heterogeneous samples. The choice really depends on your sample’s nature (volatile, reactive, high-melting) and what you want to find out (melting point, glass transition, reaction enthalpy).

How Do I Properly Clean and Handle Reusable DSC Sample Pans?

Reusable pans save money, but improper cleaning leads to cross-contamination. This ruins future experiments. Proper cleaning and handling of reusable DSC sample pans, like platinum or ceramic ones, are absolutely essential to maintain their performance and ensure data integrity.

Properly clean reusable DSC pans by removing gross residue, then using appropriate solvents or heat treatment (e.g., furnace for platinum). Always handle with clean tweezers, never bare fingers, to prevent contamination and ensure longevity and accurate results.

This is a critical point if you opt for reusable pans like platinum, gold, or some ceramics. The whole idea of reusability is lost if you carry over residue from one sample to the next. My first step is always mechanical removal of as much residue as possible, very gently, perhaps with a soft brush or a wooden pick if the residue is solid – you don’t want to scratch the pan surface, especially with soft metals like gold or platinum. After that, the cleaning method depends on the pan material and the nature of the contaminant. For platinum pans that have been used with organic materials, I often heat them in a muffle furnace to a high temperature (e.g., 800-900°C) for a period to burn off any carbonaceous residues. Sometimes, an acid wash (e.g., dilute nitric or hydrochloric acid, depending on what needs to be removed) might be necessary, followed by thorough rinsing with deionized water and drying. It’s crucial to know what your sample was and what might react with the cleaning agent or the pan itself. For example, you wouldn’t want to use an acid that attacks the pan material. For ceramic pans, similar high-temperature furnace cleaning can be effective. Solvents can also be used if the residue is soluble. For instance, if I’ve run a polymer that’s soluble in toluene, I might rinse the pan with toluene. After any cleaning procedure, it’s a good idea to run the cleaned, empty pan in the DSC as a blank to ensure no residues or cleaning agents are left behind that could interfere with the next analysis. And always, always handle these pans with clean tweezers. Fingerprints are a definite source of contamination.

Can I Use a PerkinElmer Pan in a TA Instruments DSC (and Vice-Versa)?

Mixing pan brands seems like an easy way to use up existing stock. But this can lead to poor fit or even instrument damage. While some third-party pans are designed for cross-compatibility, using a PerkinElmer pan in a TA Instruments DSC, or vice-versa, is generally not recommended unless explicitly stated as compatible by a reputable supplier.

Using pans from one instrument brand (e.g., PerkinElmer) in another (e.g., TA Instruments) is risky unless they are certified as compatible. Pan dimensions and design are optimized for specific sensor geometries, and mismatches can cause poor thermal contact, inaccurate data, or autosampler jams.

This is a very common question, and my general advice is to be extremely cautious. DSC instruments, while performing the same basic function, have different sensor designs, furnace geometries, and autosampler mechanisms. The sample pans are engineered to fit precisely with their respective instrument’s design to ensure optimal thermal contact with the sensor and smooth operation, especially with autosamplers. For example, the base diameter, the height of the pan, the shape of the rim, and even the material’s flatness tolerances can vary subtly between pans designed for, say, a PerkinElmer DSC versus a TA Instruments DSC or a Mettler Toledo DSC. Using a pan that isn’t a perfect fit can lead to several problems. Poor thermal contact is a major one, resulting in noisy baselines, broadened peaks, and inaccurate temperature measurements. If the pan doesn’t sit correctly, it might also not heat or cool uniformly. With autosamplers, an incorrectly sized or shaped pan can easily cause a jam, leading to instrument downtime and potentially costly repairs. I’ve seen it happen! That said, there are reputable third-party consumable manufacturers, like my company LabShopX, who specialize in producing high-quality compatible pans. We invest heavily in ensuring our pans meet or exceed the dimensional and performance specifications for various instrument brands. We provide clear compatibility charts. So, if you are considering using a non-OEM pan, make sure it’s from a trusted supplier who explicitly guarantees compatibility with your specific DSC model. Don’t just assume that because a pan looks similar, it will work. It’s always best to verify or even test a small batch first.

Where Can I Find Reliable Compatibility Charts for DSC Sample Pans?

Finding accurate pan compatibility information can be a challenge. This uncertainty can lead to purchasing errors. Reliable compatibility charts for DSC sample pans are typically available from instrument manufacturers and reputable third-party consumable suppliers like LabShopX.

Reliable DSC sample pan compatibility charts can be found on the websites of original instrument manufacturers (OEMs) and specialized, reputable DSC consumable suppliers. These charts list pan models suitable for specific DSC instruments, ensuring proper fit and performance.

This is key to avoiding the problems I just discussed. Your first port of call should always be the documentation that came with your DSC instrument or the website of the instrument manufacturer (e.g., TA Instruments, PerkinElmer, Mettler Toledo, Netzsch, Shimadzu). They will list the pan types specifically designed and recommended for their instruments. This is the safest bet for guaranteed compatibility. However, as mentioned, high-quality compatible pans from third-party suppliers can be a cost-effective alternative. Reputable suppliers in this space, and I count LabShopX among them, will provide detailed compatibility information. On our website, for example (www.labshopx.com), we aim to have clear listings showing which of our pan products are compatible with which major DSC instrument models. This information is based on careful matching of specifications and often on direct testing. When looking at a third-party supplier, check for how clearly they present this information. Do they specify instrument brands and models? Do they provide detailed pan specifications (dimensions, materials, volume)? A good supplier will be transparent about this. Some scientific supply houses that carry a broad range of lab equipment might also have compatibility guides, but I would always cross-reference with the pan manufacturer’s own information if possible. Online forums or user groups related to thermal analysis can sometimes offer anecdotal advice, but I would treat that with caution and always prioritize official sources or direct confirmation from a knowledgeable supplier. Getting this right saves a lot of potential trouble. A quick check of a chart or a call to the supplier is much better than a failed experiment or a damaged instrument.

I hope answering these common questions about DSC sample pans helps you use these essential tools more effectively. Clear understanding leads to better science, and that’s what we all aim for in the lab every day.
