Which DSC Sample Pan Technical Specs Matter Most for Accuracy?

Inaccurate DSC results can derail your research. This often stems from overlooking crucial pan specifications. Understanding key DSC sample pan technical specs is essential for achieving precise and reliable thermal analysis data every time.

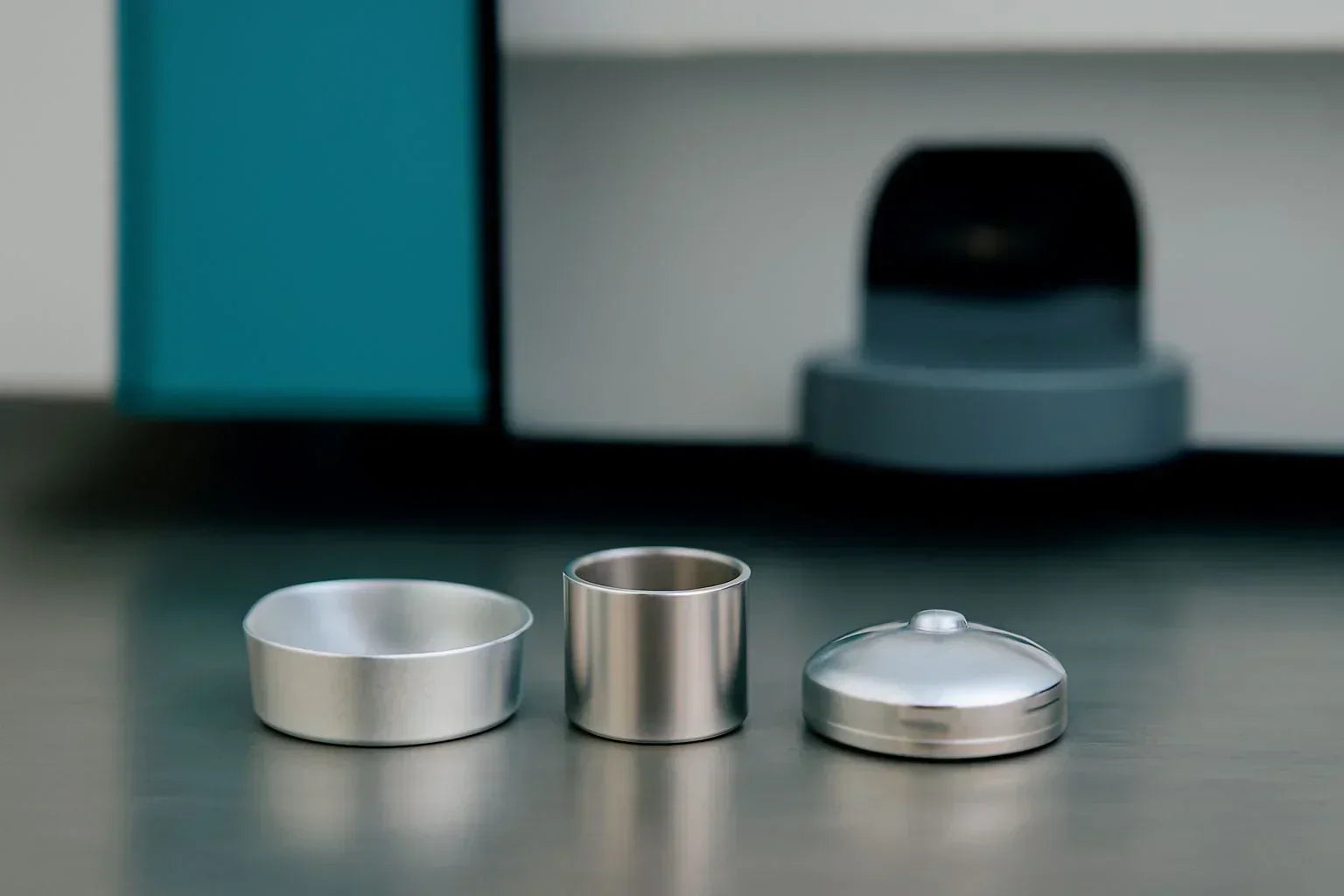

The most critical DSC sample pan technical specs for accuracy are material composition, pan mass and volume, base flatness, and lid type. These directly influence heat transfer, sample interaction, and overall data quality in your experiments.

I've seen firsthand how a seemingly minor detail in a pan's specification can have a major impact on the final DSC curve. It's not just about having a pan; it's about having the *right* pan, with the right specs for your specific needs.

How Does DSC Pan Material (Al, Pt, Ceramic) Influence Heat Flow?

Choosing the wrong pan material can lead to poor heat transfer or unwanted sample reactions. This compromises your DSC results. Selecting the appropriate pan material ensures optimal heat flow and minimizes interactions, leading to accurate thermal measurements.

DSC pan material significantly influences heat flow due to its thermal conductivity. Aluminum offers excellent conductivity for general use. Platinum is for high temperatures and corrosive samples. Ceramics are for extreme temperatures, each ensuring data integrity for specific conditions.

The thermal conductivity of the pan material is a really big deal. Think of it like this: you want the heat from the DSC furnace to transfer quickly and evenly to your sample, and then from your sample to the sensor. If the pan material is a poor conductor, there will be a lag, and your measured temperatures and heat flow signals might not accurately reflect what's happening in the sample. Standard aluminum pans are popular precisely because aluminum has very good thermal conductivity. This makes them great for most applications up to around 600°C. However, if I am working with samples that are corrosive, or if I need to go to much higher temperatures, aluminum is no longer suitable. That's when I turn to materials like platinum. Platinum is much more inert than aluminum and can withstand very high temperatures, often up to 1000°C or even higher for some alloys. Its thermal conductivity is still good, though not as high as aluminum. For even more extreme temperatures, perhaps for analyzing ceramics or some metals, I might use ceramic pans, such as those made from alumina or zirconia. These can go to 1500°C or more. However, ceramics generally have lower thermal conductivity than metals, so this needs to be factored into the experimental design and data interpretation. The key is to match the pan material not only to the temperature range but also to the chemical nature of your sample to avoid any unwanted reactions that could generate false peaks or consume your sample.

What Is the Impact of Sample Pan Volume and Mass on DSC Curves?

Using a pan with inappropriate volume or mass can distort your DSC signal. This makes subtle transitions hard to detect. Optimizing pan volume and mass enhances sensitivity and resolution, allowing for clearer and more accurate interpretation of DSC curves.

Sample pan volume dictates the maximum sample size, while pan mass affects the instrument's thermal responsiveness. Smaller, lighter pans generally offer better resolution and sensitivity, crucial for detecting weak thermal events or analyzing small sample quantities accurately.

When I'm trying to detect a very subtle thermal event, like a weak glass transition or a minor impurity melting, the mass of the sample pan itself becomes very important. A heavier pan has a higher thermal mass. This means it takes more energy to heat it up, and it can dampen or obscure small heat flow changes from the sample. Lighter pans, on the other hand, respond more quickly to temperature changes and allow for better resolution of these subtle events. That's why you'll often find options for lightweight aluminum pans for high-sensitivity measurements. The volume of the pan is also a critical consideration. It obviously limits the amount of sample I can load. For some samples, especially if they are heterogeneous, I might need a larger sample volume to get a representative analysis. However, using too much sample, even if it fits in the pan, can lead to problems like poor heat transfer through the sample itself, resulting in broad peaks and shifted transition temperatures. There's a balance to be struck. For most applications, a sample mass of 5-10 mg is typical, and standard pan volumes (e.g., 40 microliters) are usually sufficient. But if I'm working with very limited material, or if the material is highly energetic, I would opt for smaller pans and smaller sample sizes. The heat capacity of the pan also contributes to the overall heat flow signal, and this is directly related to its mass and material.

Why is the Flatness of a DSC Sample Pan Base So Critical?

A non-flat pan base leads to poor thermal contact with the DSC sensor. This results in noisy and unreliable data. Ensuring a perfectly flat pan base is critical for consistent heat transfer, stable baselines, and accurate temperature measurements.

The flatness of a DSC sample pan base is critical because it ensures uniform and optimal thermal contact with the DSC instrument's sensor. This direct contact is essential for accurate heat flow measurement and precise temperature determination during analysis.

I can't stress this enough: the interface between the sample pan and the DSC sensor is where all the magic happens. If that contact isn't perfect, your results will suffer. Imagine trying to cook something on a warped frying pan – you get hot spots and uneven cooking. It's a similar principle here. If the pan base is convex or concave, even slightly, it won't sit flush on the flat sensor surface. This creates air gaps, and air is a poor conductor of heat. The result? The heat transfer from the furnace to the pan, and then from the pan to the sensor, becomes inefficient and uneven. This can manifest in your DSC curve as a noisy baseline, broadened peaks, and even shifts in the measured transition temperatures. It makes it very difficult to accurately determine onset temperatures or integrate peak areas for enthalpy calculations. I always visually inspect pans before use, looking for any signs of damage or warping. High-quality pans are manufactured with very tight tolerances to ensure their bases are perfectly flat. This is one of those seemingly small details that can make a huge difference in the quality of your DSC data. It's particularly important when you're looking for high precision and reproducibility, for example, in pharmaceutical quality control or materials research where subtle differences matter. Some DSC instruments even have features to detect poor pan contact, but it's always best to start with a good quality, flat pan.

How Do Different DSC Pan Lid Types Affect Experimental Results?

Using the wrong lid type can cause sample loss or unwanted pressure buildup. This can ruin your experiment. Choosing the correct DSC pan lid type for your sample and analysis conditions is vital for data integrity and operational safety.

Different DSC pan lid types (e.g., standard, vented, hermetic, pierced) control the atmosphere around the sample. Hermetic lids prevent volatile loss. Vented lids allow pressure release. The choice directly impacts measured transitions and ensures experiment safety and accuracy.

The lid I choose for my DSC pan is just as important as the pan itself, and it really depends on what I'm trying to measure and the nature of my sample. For many routine measurements of stable, non-volatile materials, a standard, loosely fitting lid or a vented lid is perfectly fine. These allow for pressure equilibration with the surrounding purge gas in the DSC cell. However, if my sample contains any volatile components, like moisture or residual solvents, or if the sample itself might decompose to produce gases, then I absolutely need a hermetically sealed pan. These pans are crimped with a special press to create an airtight seal. This prevents any mass loss during the experiment, which would otherwise show up as an endothermic event and potentially mask or distort the true thermal transitions of the sample. I use hermetic pans extensively when studying hydrates, solvates, or performing purity determinations where even slight volatilization can affect the result. Pierced lids are a bit of a special case. These are often hermetically sealed initially, but then a tiny hole is pierced in the lid just before the run or it might be designed to self-pierce at a certain pressure. This allows volatiles to escape in a more controlled manner, which can be useful for certain types of studies, like evolved gas analysis if the DSC is coupled to another instrument. Then there are high-pressure pans, which come with robust lids designed to withstand significant internal pressures, essential for studying reactions or decompositions under pressure. Using the wrong lid can lead to erroneous results (e.g., shifted melting points if a volatile impurity escapes) or even safety hazards if pressure builds up excessively in a pan not designed for it.

Paying close attention to these critical DSC sample pan technical specifications is fundamental. It ensures your thermal analysis is not just a routine measurement, but a source of accurate, reliable, and insightful data for your work.
