Which DSC Sample Pan is Best for Your Specific Analysis Scenario?

Using a generic pan for a specialized DSC analysis can lead to inaccurate or misleading results. This is a common pitfall. Matching the DSC sample pan to your specific analysis scenario is absolutely crucial for obtaining reliable and meaningful data.

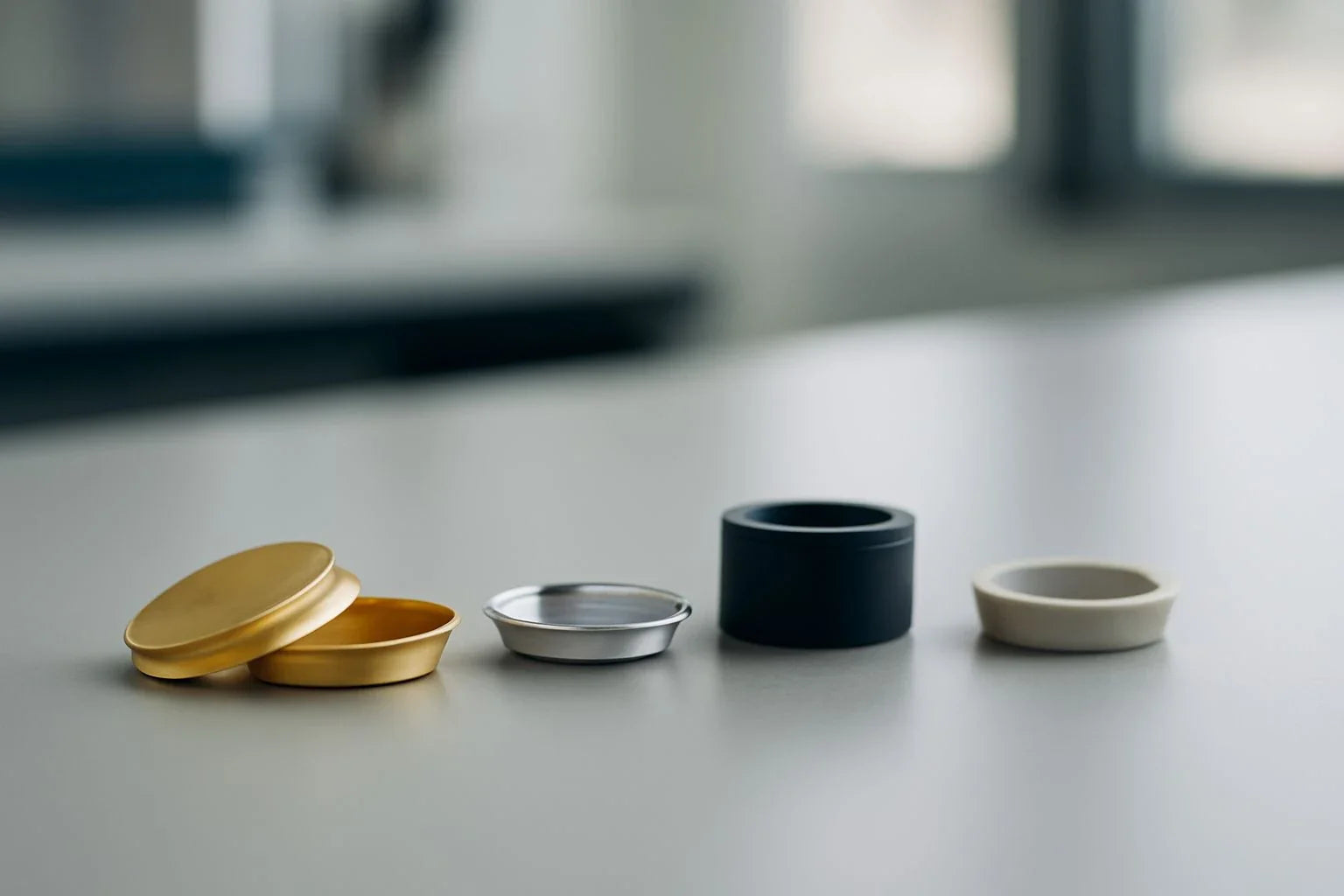

The best DSC sample pan for your specific analysis scenario depends on factors like sample volatility, temperature range, chemical reactivity, and the nature of the thermal event you are studying. Careful selection ensures optimal performance and data accuracy.

I often tell my colleagues that a DSC pan isn't just a container; it's an integral part of the experiment. The wrong choice can completely invalidate your findings. Let’s look at some common scenarios I encounter and the pans I’d choose.

What's the Ideal DSC Pan for Analyzing Volatile Organic Compounds?

Analyzing volatile compounds in an open pan means your sample literally disappears into thin air. This makes accurate measurement impossible. For volatile organic compounds (VOCs), the ideal DSC pan must prevent sample loss to ensure reliable thermal analysis.

The ideal DSC pan for analyzing volatile organic compounds is a hermetically sealed pan, often made of aluminum or gold. This type of pan prevents sample evaporation during the heating process, ensuring accurate determination of boiling points or vaporization enthalpies.

When I'm tasked with analyzing samples containing volatile organic compounds – perhaps determining the purity of a solvent or studying the vaporization of a fragrance component – my immediate go-to is a hermetically sealed pan. These pans are designed to create an airtight seal when crimped properly with a press. This is absolutely essential because if the VOCs evaporate during the DSC scan, the instrument will detect the heat of vaporization, which can be a very large endothermic peak, potentially obscuring other subtle thermal events or leading to a continuously drifting baseline. Moreover, the loss of sample mass means the quantitative accuracy of any measured enthalpies (like heat of fusion or reaction) would be compromised. For most VOCs, standard aluminum hermetic pans work very well. They are cost-effective and provide good thermal conductivity. However, if the VOC is particularly aggressive or if I need to go to slightly higher temperatures where aluminum might become reactive, I would consider using gold hermetic pans. Gold is much more inert and can provide cleaner data for sensitive applications. I remember a project where we were studying the thermal behavior of a new solvent mixture. Initial runs with vented pans gave completely uninterpretable results due to continuous evaporation. Switching to properly sealed hermetic aluminum pans immediately gave us sharp, reproducible boiling endotherms, allowing us to characterize the mixture accurately. It’s also important to ensure the crimp is perfect; even a tiny leak can ruin the experiment when dealing with highly volatile substances.

How Do You Select a DSC Pan for High-Temperature Polymer Melts?

Using standard aluminum pans for high-temperature polymer melts can lead to pan failure or reaction. This will ruin your sample and potentially damage your DSC. Selecting the correct DSC pan for high-temperature polymer melts is critical for safety and data accuracy.

For high-temperature polymer melts (e.g., >400°C), you should select DSC pans made from materials like graphite, ceramic (alumina, zirconia), or platinum. These materials offer excellent thermal stability and chemical inertness at elevated temperatures, ensuring reliable analysis.

Many advanced polymers, especially engineering plastics or high-performance composites, require DSC analysis at temperatures well above the safe operating limit of aluminum pans. For example, polymers like PEEK (Polyether ether ketone) or some polyimides have melting or decomposition temperatures that can exceed 400°C, sometimes going much higher. In these situations, using an aluminum pan is out of the question; it would melt or react. My choice of pan here depends on the exact temperature range and the chemical nature of the polymer. Graphite pans are a good option for many high-temperature applications, especially if a reducing atmosphere is acceptable or if I want to avoid metallic contamination. They can typically be used up to very high temperatures, sometimes even above 1000°C, depending on the grade and the purge gas. However, graphite can be reactive with some metals or oxidizing atmospheres. Ceramic pans, such as those made from high-purity alumina (Al2O3) or zirconia (ZrO2), are excellent for very high temperatures and are generally very inert. I often use alumina pans for studying the thermal stability or decomposition of polymers at temperatures approaching 1000°C or more. Platinum pans are another robust choice for high-temperature polymer analysis. They offer good thermal conductivity and are very resistant to oxidation and corrosion, making them suitable for a wide range of polymer melts up to around 1000°C or slightly higher. The key is to ensure the pan material itself doesn’t undergo any phase transitions or reactions in the temperature range of interest and doesn’t catalyze any degradation of the polymer sample. I once tried to analyze a fluoropolymer at high temperature in a pan that wasn't sufficiently inert, and the resulting off-gassing was quite corrosive – a lesson in careful material selection!

Which Pan Type Is Recommended for Studying Pharmaceutical Polymorphs?

Detecting subtle polymorphic transitions in pharmaceuticals requires high sensitivity and resolution. Using the wrong pan can obscure these critical events. For studying pharmaceutical polymorphs, a specific pan type is recommended to ensure accurate and clear detection of these subtle thermal events.

For studying pharmaceutical polymorphs, small-volume, highly conductive pans like aluminum or gold are recommended. These pans, often hermetically sealed to prevent solvent loss from solvates, allow for rapid thermal equilibration and clear detection of subtle polymorphic transitions.

The study of polymorphism in active pharmaceutical ingredients (APIs) is incredibly important because different crystalline forms of the same drug can have vastly different solubilities, dissolution rates, and bioavailabilities. DSC is a primary tool for identifying and characterizing these polymorphs. Because polymorphic transitions can often be subtle and occur close together in temperature, or involve small enthalpy changes, the choice of DSC pan is critical for obtaining clear and unambiguous results. I generally prefer to use small-volume aluminum pans, typically around 20-40 microliters. The small volume allows me to use a small sample mass (usually 1-5 mg), which improves resolution and minimizes thermal gradients within the sample. Aluminum’s high thermal conductivity ensures rapid heat transfer, which helps in sharpening the peaks and clearly resolving closely spaced thermal events. If the API is a solvate or hydrate, or if there's any concern about sublimation, then hermetically sealed aluminum pans are essential to prevent mass loss. For very sensitive APIs or when trying to detect extremely subtle transitions, gold pans can offer an advantage due to their higher inertness compared to aluminum, minimizing any potential sample-pan interaction that might obscure the true polymorphic behavior. I also pay close attention to the heating rate; slower heating rates (e.g., 1-5 °C/min) often provide better resolution of polymorphic transitions. The goal is to see clear, distinct peaks for each event, such as a melt of one polymorph followed by recrystallization into a more stable form, and then the melt of that more stable form. The right pan helps achieve this clarity.

What's the Best DSC Pan Choice for Corrosive Material Analysis?

Analyzing corrosive materials in standard pans can lead to pan degradation and sample contamination. This will invalidate your results and potentially damage your instrument. Choosing the best DSC pan for corrosive material analysis is vital for protecting your equipment and ensuring data accuracy.

The best DSC pan choice for corrosive material analysis is typically a gold or platinum pan. For extremely aggressive substances or very high temperatures, specialized ceramic pans (like alumina or sapphire) or even tantalum pans might be considered, ensuring inertness and data integrity.

When I’m faced with analyzing a sample that I know or suspect is corrosive – perhaps an acidic compound, a strong oxidizing agent, or a molten salt – my primary concern is to protect both my sample’s integrity and my DSC instrument. Standard aluminum pans are generally not suitable for corrosive materials as aluminum is quite reactive and can be easily attacked by acids, strong bases, or oxidizing agents. This reaction would not only consume the pan but also contaminate the sample and produce spurious thermal events on the DSC curve. For many corrosive materials, gold pans are an excellent first choice. Gold is a very noble metal and is highly resistant to attack by most chemicals, except for things like aqua regia. Gold pans provide good thermal conductivity and can be used up to moderately high temperatures (around 700-800°C, depending on purity and construction). Platinum pans offer even higher temperature capabilities (often >1000°C) and are also very resistant to corrosion, though they can be attacked by certain molten metals or halogens at high temperatures. If the material is extremely aggressive or the analysis needs to be done at very high temperatures where even gold or platinum might show some reactivity, then I would look into more specialized options. High-purity alumina (Al2O3) ceramic crucibles are very inert and can withstand extremely high temperatures. Sapphire (single crystal alumina) pans offer excellent chemical resistance and a very well-defined thermal behavior. For certain specific applications, particularly with some molten metals or very aggressive acids at high temperatures, tantalum pans might be used, although tantalum itself can become brittle if it absorbs certain gases. The key is to consult chemical compatibility charts and, if unsure, perform a preliminary test with a small amount of sample in the chosen pan material outside the DSC to observe for any visible reaction before committing to a full DSC experiment.

By carefully considering the unique demands of your sample and experimental conditions, you can confidently select the DSC sample pan that will deliver the most accurate and reliable results, advancing your research or quality control efforts effectively.
