Choosing between a crucible and a sample pan can make or break thermal analysis results. A simple misunderstanding may cause wasted time and failed experiments.

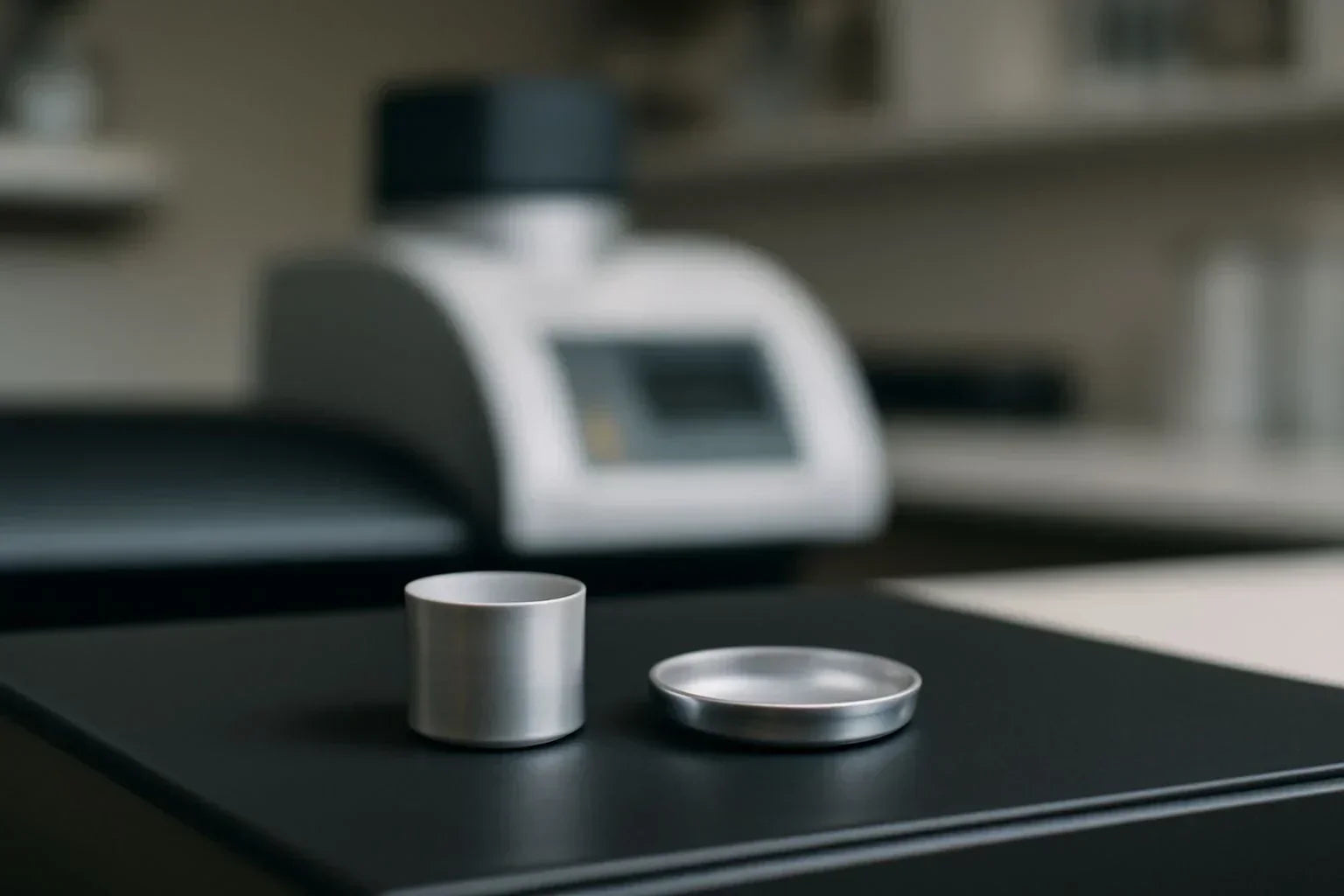

Crucibles and sample pans are both used to hold samples during thermal analysis, but they differ in design, sealing, and applications. Pans are usually shallow and open for fast heat changes, while crucibles are deeper and often sealed for controlled reactions.
Many researchers overlook these differences and assume crucibles and pans are interchangeable. When I first set up for my own DSC experiment, I picked the wrong container and found my heat flow readings totally off. Let’s clarify what really sets these two apart and help you pick the right SKU to prevent project setbacks.
Are crucibles and sample pans the same in DSC?
Picking the wrong vessel in DSC can ruin your experiment. Two different types serve different needs.
Crucibles in DSC are typically deeper and may be sealed, used for volatile or sensitive samples. Sample pans are shallow and open, providing faster heat exchange for most DSC applications.
| Property | Crucible in DSC | Sample Pan in DSC |
|---|---|---|
| Depth | Deep | Shallow |
| Sealing | Often sealable | Usually open |
| Used for | Volatile or hazardous samples | General heat flow measurement |
| Heat Transfer | Slower | Faster |
| Example Material | Aluminum, platinum | Aluminum, ceramic |
In a DSC run, I tried both a shallow pan and a closed crucible. The difference in melting peak sharpness and sample loss was clear. Understanding the difference can mean accurate, repeatable data or error-filled runs. One key detail is sealing; a shallow pan won’t keep volatile byproducts in, which can matter for organic samples. This design difference is defined by thermal analysis device manufacturers and impacts the consistency and safety of experiments.
Which experiments use pans vs crucibles?
Many labs swap pans and crucibles without thinking, but their use in different experiments is critical for accurate results.
Pans suit fast, open thermal events like DSC of polymers. Crucibles are better for TGA, DTA, and experiments with harsh chemicals or high temperature reactions.
| Experiment | Container Used | Main Reason | Limits |
|---|---|---|---|
| DSC (Differential Scanning Calorimetry) | Sample Pan | Open, fast heat transfer for phase transitions | Limited with volatile samples |
| TGA (Thermogravimetric Analysis) | Crucible | Can be sealed, resists weight changes and high temp | Slower heat change |
| DTA (Differential Thermal Analysis) | Crucible | Sealed, controls sample-atmosphere interaction | Harder to load or observe |
| High temp oxidation study | Crucible | Withstands 1000°C+ | May need exotic materials |
I once used a pan for a high temp TGA run, thinking any container would do. My sample charred too quickly, data was unreliable, and I had to repeat the experiment. Understanding applications, especially the limits of pans vs crucibles, helps avoid these common mistakes. More on TGA and why it needs special crucibles can help you pick the right tool for every run.
What crucible types are used in TGA vs DTA?
Not all crucibles perform the same in every thermal analysis method. The type of crucible impacts data quality and safety.
TGA relies on crucibles that handle mass loss at high temperatures; DTA crucibles may need strong seals. Both can be ceramic, alumina, platinum or other metals, but form and fit differ by experiment type.
| Crucible Type | TGA | DTA | Pros | Cons |
|---|---|---|---|---|
| Platinum | Yes | Yes | High temperature, unreactive | Expensive |
| Alumina | Yes | Yes | Affordable, great for oxidation | Lower thermal conductivity |
| Ceramic | Yes | Yes | Chemically resistant, easy to clean | Brittle |
| Aluminum | Limited | No | Cheap, disposable | Melts in high temp |
| Sapphire | Yes | Sometimes | Excellent for high temp, non-reactive | Very costly |
When I needed highly accurate TGA results for a pharmaceutical sample, my group switched from alumina to platinum. The mass loss curves became more stable and cleaning was easier. Users can review detailed crucible properties and limitations so that you never pick a type that reacts with your sample or causes failure. Each crucible’s thermal conductivity and price can change your experiment budget and outcome drastically.
Is a crucible always covered or sealed?
Some assume all crucibles must be tightly covered, but that is not always true—cover design has a direct impact on the results.
Crucibles may be open, partially covered, or sealed tight, depending on the experiment. Seal type affects sample evaporation, safety, and atmospheric contact.
| Cover Type | Sealing Level | Use Case | Impact |
|---|---|---|---|
| Open | None | Routine DSC, simple TGA | Fast reactions, possible sample loss |
| Perforated Lid | Partial | Oxidation studies | Controls gas flow |
| Crimped/Sealed | Full | Volatile, toxic, or air-sensitive samples | Prevents leaks, ensures safety |
| Screw Cap | High | Corrosive chemicals, special protocols | Maximum containment |
I once sealed a standard aluminum crucible for a solvent-rich polymer, and the results were very consistent compared to an open pan. Choosing the right level of coverage can be as critical as the container itself. Learning about crucible cover types gives you more control over purity and reproducibility in thermal analysis. Even something as simple as a perforated versus solid lid impacts gas flow, which the ISO 11358 standard recognizes (ISO 11358).
