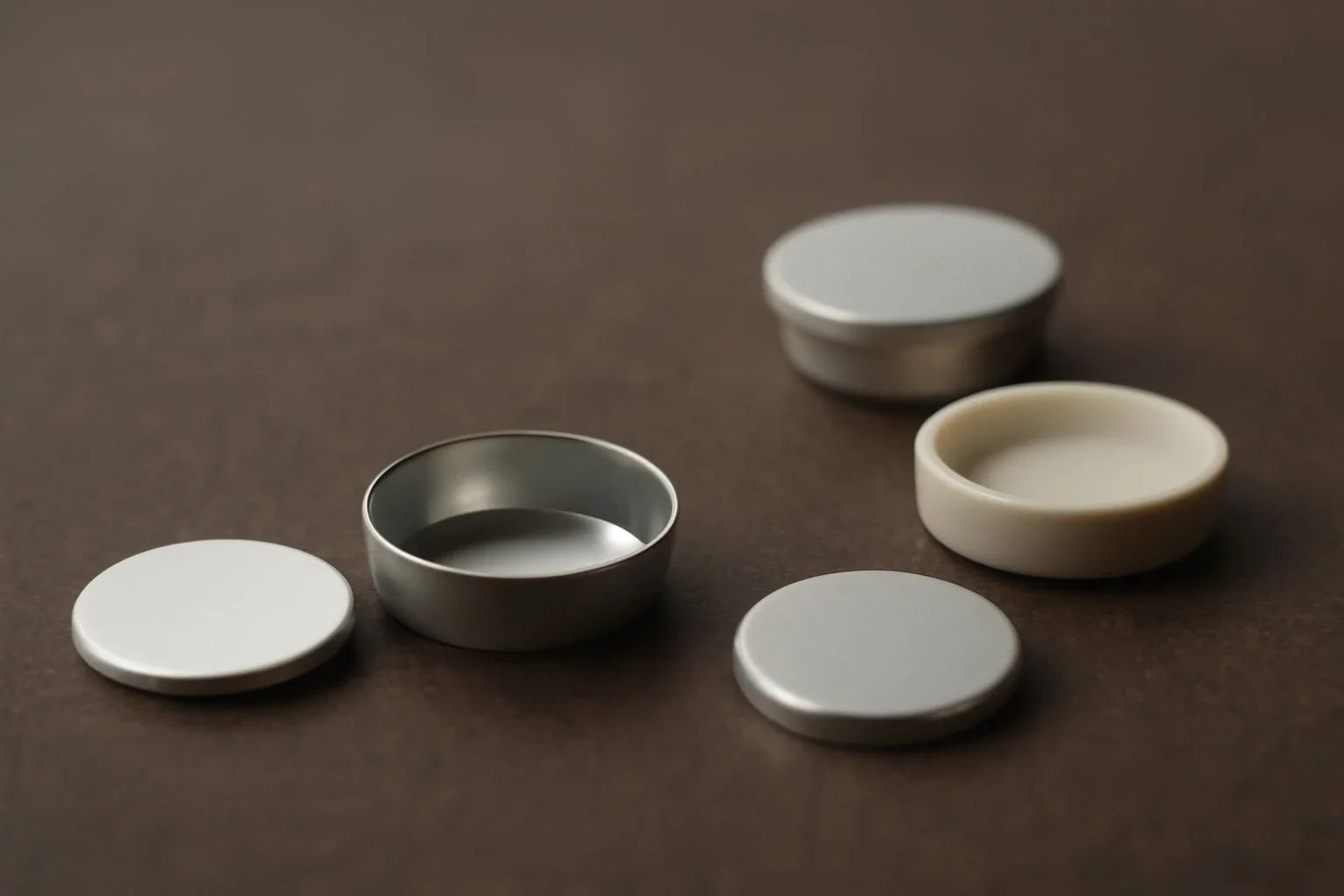

In thermal analysis, using the correct sample pan is crucial to obtaining accurate results. Sample pans with lids must meet specific technical requirements to ensure reliable data. This article will explore the key specifications of these pans, helping you understand what to look for to achieve the best performance in your thermal experiments.
Sample pans with lids are essential for maintaining sample integrity during thermal analysis. The ideal pan material, dimensions, and lid fit are all important for obtaining consistent and precise results. Understanding these specifications will help you select the right sample pans for your needs, preventing issues like contamination or thermal instability.
To dive deeper into the key specifications for sample pans with lids, let's explore the material properties, the impact of dimensions and lid fit, the importance of weight tolerance, and which lid designs are ideal for protecting sensitive samples.
What material properties should sample pans with lids have for thermal stability?
The material of the sample pan is the first factor to consider for thermal stability. It should be resistant to high temperatures and chemically inert. A pan that reacts with the sample or cannot withstand the analysis temperature will lead to faulty results.
Materials like aluminum, platinum, and ceramic are often used for their high thermal stability. Aluminum is lightweight and has good thermal conductivity, while platinum offers exceptional resistance to high temperatures. Ceramic materials, like zirconia, are used when samples require resistance to extremely high temperatures. These materials ensure that the sample pan can withstand thermal cycles without degradation.
| Material | Thermal Stability | Common Uses |
|---|---|---|
| Aluminum | Up to 600°C | Standard thermal analysis tests |
| Platinum | Up to 1600°C | High-temperature applications |
| Ceramic (Zirconia) | Up to 2000°C | Extremely high-temperature tests |
Choosing the right material ensures that the pan will not affect the results of your thermal analysis. In some cases, specific materials are preferred based on their resistance to thermal expansion or their ability to maintain a consistent thermal conductivity throughout the analysis process.
How do sample pan dimensions and lid fit affect thermal analysis results?
The size of the sample pan and the fit of its lid are crucial for maintaining accurate thermal analysis results. If the lid does not fit correctly, it can lead to contamination, inconsistent heating, or loss of volatile components from the sample.
Sample pan dimensions should match the specifications of the thermal analysis equipment to avoid gaps or pressure points that could affect the heat flow. The lid should fit snugly, ensuring no air leaks during analysis. A poor fit can alter the heat flow and result in uneven heating or loss of sample integrity.
| Dimension | Impact on Results |
|---|---|
| Too Small | Leads to inconsistent results due to poor contact with the heating surface. |
| Too Large | May cause inaccurate temperature readings or uneven heating. |
| Snug Fit | Ensures accurate thermal response and prevents contamination. |
Choosing the right pan size and lid fit helps to maintain thermal uniformity and ensures reliable test results. Always verify that the dimensions match your analyzer specifications before purchasing the pans.
What is the ideal weight tolerance for sample pans with lids?
The weight tolerance of the sample pan is another critical specification. The ideal tolerance ensures that the pan will maintain its shape and consistency throughout thermal analysis. Any deviation in weight can affect the results, especially in high-precision experiments like differential scanning calorimetry (DSC).
For high-precision applications, a weight tolerance of ±0.01g is often required. This level of accuracy ensures that the sample pan will provide consistent results, particularly for very small samples or when measuring heat flow at precise temperatures.
| Weight Tolerance | Ideal Use |
|---|---|
| ±0.01g | For high-precision DSC or TGA analysis |
| ±0.05g | Standard thermal analysis tests |
| ±0.1g | General analysis with less precision required |
Choosing the right weight tolerance helps to ensure that the pan will maintain consistency throughout the test, preventing errors due to slight variations in the sample weight.
Which lid designs provide the best protection for sensitive samples in thermal tests?
The design of the lid plays a significant role in protecting sensitive samples during thermal analysis. A well-designed lid ensures that the sample remains sealed, preventing contamination and maintaining the sample's integrity during heating.
Lid designs with a tight-fitting seal, such as those with O-rings or locking mechanisms, are ideal for protecting sensitive samples. These designs minimize the risk of leakage or contamination, which can lead to errors in analysis.
| Lid Design | Benefit |
|---|---|
| Snap-fit | Provides a secure seal, preventing leakage during heating. |
| O-ring Sealed | Ensures tight sealing, ideal for volatile or sensitive samples. |
| Locking Mechanism | Prevents accidental opening and ensures sample protection. |
The right lid design helps ensure that the sample undergoes the thermal analysis process without the risk of contamination or sample degradation, which is particularly important for volatile or heat-sensitive materials.
In conclusion, selecting the right sample pan with lid involves considering material properties, dimensions, weight tolerance, and lid design. Each specification plays a critical role in ensuring accurate and reliable thermal analysis results. By understanding these key factors, you can optimize your thermal analysis tests for better precision and consistency.
