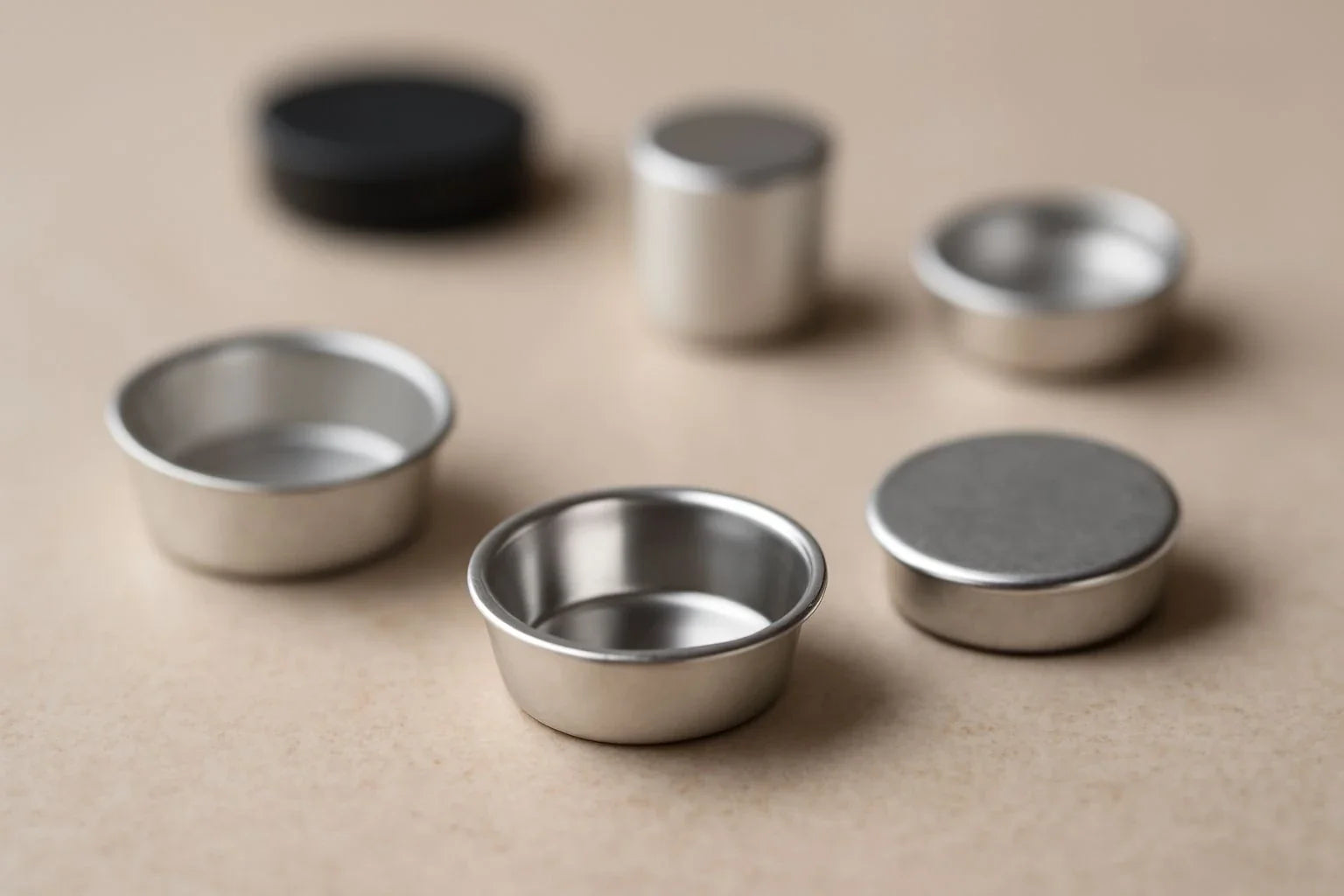

Understanding the Technical Specifications of TA DSC Sample Pans

What are the temperature and pressure ranges of TA DSC sample pans?

The temperature and pressure ranges of a sample pan are critical to ensuring the accuracy and consistency of your DSC analysis. For most applications, aluminum pans can handle temperatures up to 600°C, while platinum pans, known for their high stability, can withstand temperatures up to 725°C. Additionally, TA DSC pans are designed to operate under a range of pressures, typically in an atmospheric range, but special conditions like inert atmospheres or vacuum settings may require specific pan designs.

Aluminum pans are suitable for a majority of thermal analysis needs due to their ability to provide rapid thermal response. However, platinum pans are more suitable for high-temperature experiments where aluminum pans would degrade or fail. The choice of pan material depends not only on the temperature range but also on the sample's properties.

The temperature range selection is vital to achieving the correct results in your thermal analysis. If your sample exceeds the pan's temperature capabilities, it could result in inaccurate or failed experiments. Understanding the temperature resistance of each material type is essential for your selection process.

For more on temperature ranges in materials, visit this Wikipedia article on temperature.

How does pan size impact sample analysis?

Choosing the correct pan size for your sample is crucial for reliable results in DSC analysis. A pan that's too small or too large for the sample can impact heat transfer efficiency and the accuracy of measurements.

Pan sizes for TA DSC instruments generally range from 5mm to 8.5mm in diameter. The selection should be based on the volume of the sample you intend to analyze. A smaller pan size allows for a higher heat transfer rate, which is beneficial for small samples, whereas larger pans are typically used for larger or bulkier samples, as they can accommodate a greater sample volume.

Understanding the effect of pan size on heat flow can be essential for optimizing your analysis. The thermal response will be more precise if the pan size matches the sample size, preventing issues like overheating or underheating.

For those needing further clarification on selecting the best pan size, below is a comparison table to guide your decision:

As you can see from the table, the pan size affects not only the volume of the sample but also how efficiently heat is transferred. Make sure to choose a pan size that aligns with the expected sample volume and thermal response needs.

For more details on heat transfer and its significance, visit this article on heat transfer.

What materials are used in TA DSC sample pans?

TA DSC sample pans are made from different materials, each offering specific advantages based on the temperature and chemical properties of the sample. The most common materials include aluminum, platinum, and ceramic.

Aluminum pans are generally used for standard applications, as they are cost-effective and provide fast heat transfer. However, for higher-temperature experiments or when chemical reactivity is a concern, platinum and ceramic pans are preferred. Platinum pans offer excellent thermal stability and are resistant to oxidation, making them ideal for higher temperatures up to 725°C. Ceramic pans, especially those made from zirconia or alumina, are durable and capable of handling even higher temperatures while maintaining sample integrity.

For those who need a specific material for their experiment, selecting the right one is essential to ensure consistent and accurate results. Each material has its benefits, so choosing wisely based on the properties of the sample is key.

For more on ceramic materials and their properties, visit this article on ceramic materials.

How to select the appropriate pan based on sample type?

When selecting a sample pan for TA DSC analysis, the choice of material and size is highly dependent on the type of sample being analyzed. For instance, organic materials may require a different pan than inorganic or composite materials.

For organic samples, aluminum pans are commonly used due to their affordability and good heat transfer properties. However, when working with high-temperature samples, platinum or ceramic pans are a better choice, as these materials can withstand extreme conditions without compromising the integrity of the sample. Similarly, for samples that involve high pressure or specific chemical reactions, specialized materials like gold-coated or sapphire pans might be necessary to avoid sample contamination.

Below is a table highlighting the appropriate pan material based on sample type:

By matching the right pan material to the sample type, you can ensure better accuracy and consistency in your thermal analysis results.

For more information on oxidation resistance, visit this article on oxidation.
