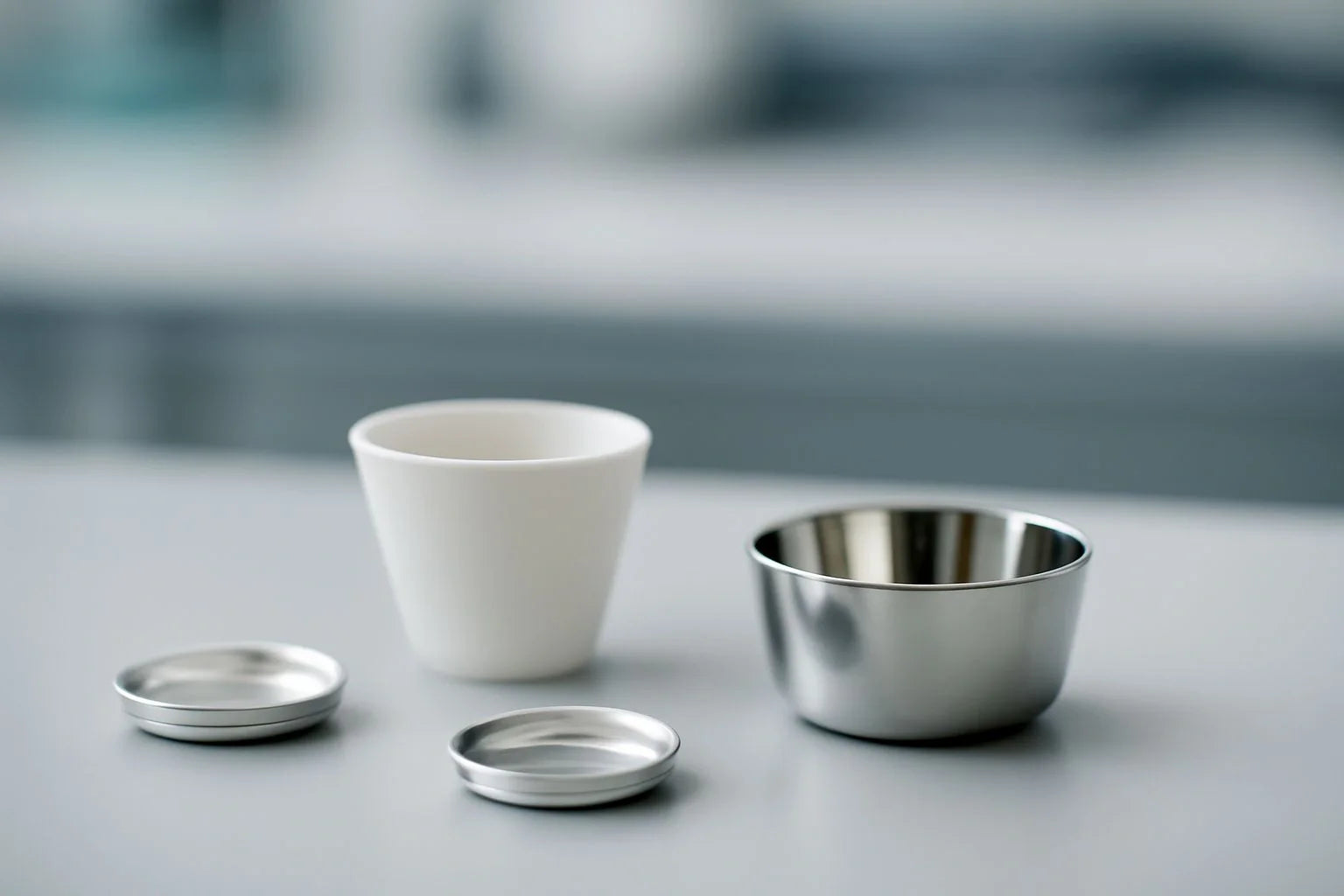

The accuracy of your thermal analysis depends heavily on the specifications of the sample pans you use. It’s crucial to understand the temperature limits, material properties, and precise measurements to ensure reliable results.
When selecting DSC or TGA sample pans, it’s essential to consider several key specifications. These include the temperature range, material properties, size, and weight consistency, all of which play a critical role in the performance and accuracy of your analysis. Let's dive deeper into these aspects to help you make an informed decision.
Choosing the right sample pan for your thermal analysis is not always straightforward. The temperature range, material, and size of the pan must match the requirements of your DSC or TGA equipment, ensuring accurate measurements. Let’s explore these factors in more detail.
What Are the Ideal Temperature Ranges for DSC Sample Pans?
Each type of sample pan is designed to withstand specific temperature ranges. If you’re dealing with high-temperature analysis, choosing a pan made of platinum or alumina is ideal. For lower temperature testing, ceramic might be the best option.
The temperature range is one of the most crucial factors to consider when selecting a DSC sample pan. For high-temperature applications, platinum or alumina pans are the preferred choice due to their superior thermal stability. On the other hand, for lower temperature ranges, ceramic pans are more suitable as they offer lower thermal conductivity and chemical stability.
Understanding the precise temperature capabilities of your sample pan ensures you avoid inaccuracies in your analysis. Let’s look deeper into the temperature ranges and the types of materials that are best suited for specific applications:
| Material | Ideal Temperature Range | Best For |
|---|---|---|
| Platinum | Up to 1600°C | High-temperature DSC analysis |
| Alumina | Up to 1500°C | High-temperature DSC analysis |
| Ceramic | Up to 1000°C | Low-temperature TGA and DSC |
Understanding the temperature range helps ensure that the material you select will not degrade or react at the temperatures required for your experiments. For more details on temperature stability, check out this Wikipedia article on thermal analysis.
Understanding the Material Properties of TGA Sample Pans
Material properties such as thermal conductivity, chemical resistance, and mechanical strength are key when selecting TGA sample pans. Different materials will perform better under different conditions, so it’s important to choose wisely.
The choice of material plays a huge role in the performance of TGA sample pans. High chemical resistance is critical for applications involving reactive samples, while good thermal conductivity ensures uniform heating. Platinum is often chosen for high-temperature, reactive tests, while alumina is more suited for stable, non-reactive environments.
Here is a breakdown of common materials used for TGA sample pans and their benefits:
| Material | Thermal Conductivity | Chemical Resistance | Best For |
|---|---|---|---|
| Platinum | High | Excellent | High-temperature, reactive analyses |
| Alumina | Medium | Good | Non-reactive, stable conditions |
| Ceramic | Low | Good | Low-temperature, non-reactive testing |
The material you choose should align with the type of analysis you’re conducting. For more on material properties, refer to the Wikipedia article on thermal conductivity.
How to Choose the Correct Size for Your DSC Sample Pan
Size matters when it comes to sample pans. The pan must be compatible with your DSC instrument's specifications to ensure accurate readings. It's also essential that the sample fits the pan properly for consistent results.
When selecting a DSC sample pan, the size must match the requirements of your thermal analysis equipment. Too small a pan might lead to uneven heating, while a pan that’s too large can result in waste of material and energy. Standard sizes include 5mm, 6.5mm, and 7mm diameters, but you can opt for custom sizes based on your equipment.
Here's a look at some common sizes for DSC sample pans:
| Size | Compatible with | Applications |
|---|---|---|
| 5mm | TA Instruments | Standard DSC tests |
| 6.5mm | METTLER | Precise material analysis |
| 7mm | Shimadzu | High-sensitivity experiments |
Why Precision and Consistency in Weight Matter in Thermal Analysis
Consistency in weight and precision in measurements are paramount in thermal analysis. Small deviations can result in inaccurate data, leading to flawed conclusions. It’s essential that your sample pans are within the specified weight tolerance.
The weight of the sample pan should be measured with precision, often with an error margin as low as ±0.01g. Even a small discrepancy can affect the outcome of your DSC or TGA analysis, especially when dealing with high-sensitivity instruments.
To maintain the accuracy of your measurements, ensure that your sample pan's weight is within the acceptable tolerance range. Here’s a look at the weight tolerance for various types of sample pans:
| Pan Type | Weight Tolerance | Recommended Use |
|---|---|---|
| Standard Aluminum | ±0.01g | High-precision DSC |
| Platinum | ±0.005g | Ultra-sensitive TGA/DSC |
| Ceramic | ±0.02g | Standard TGA |
Precise weight tolerance ensures that your analysis remains consistent and reproducible.
In conclusion, selecting the right DSC and TGA sample pans is crucial for accurate thermal analysis. By considering factors like temperature range, material properties, size, and weight consistency, you can ensure reliable results in your experiments. For any further technical support or inquiries, feel free to reach out to us at info@nexacule.com.
